EVIRT Italia thread rolling machines
Two-die and three-die thread rolling machines for threads, splines, ball screws, knurls and cold forming. Rolling force from 100 to 1,500 kN, with automation ready to integrate.
50+
Years of rolling know-how
4
Machine series
100–1,500 kN
Rolling force (22,480–337,210 lbf)
Vigasio
Made in Italy
Product range
EVIRT Italia rolling machine series
Four machine series cover standard threads, precision profiles, hollow parts and special forming jobs. All share patented auto-pitching and SYNCHRO or GEAR spindle drive options.
Rolling machines
4 models
Choose by part geometry, rolling force and level of automation.

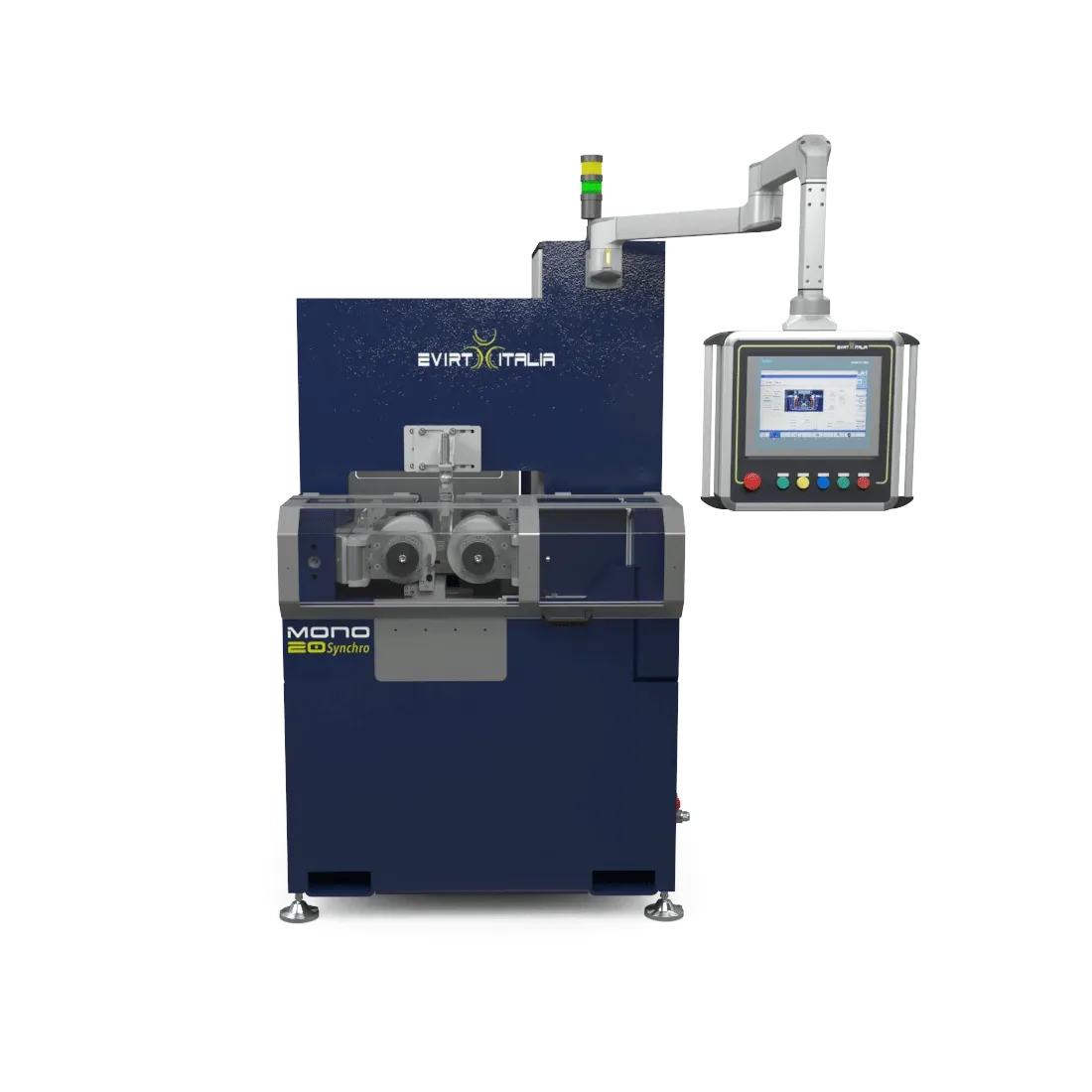

Automatic thread rolling machine
MONO Series
One moving slide and two spindles for standard threads, profiles and cold forming. Short cycle times and fully automatic setup for production lines.
100–1,000 kN (22,480–224,810 lbf)
More info

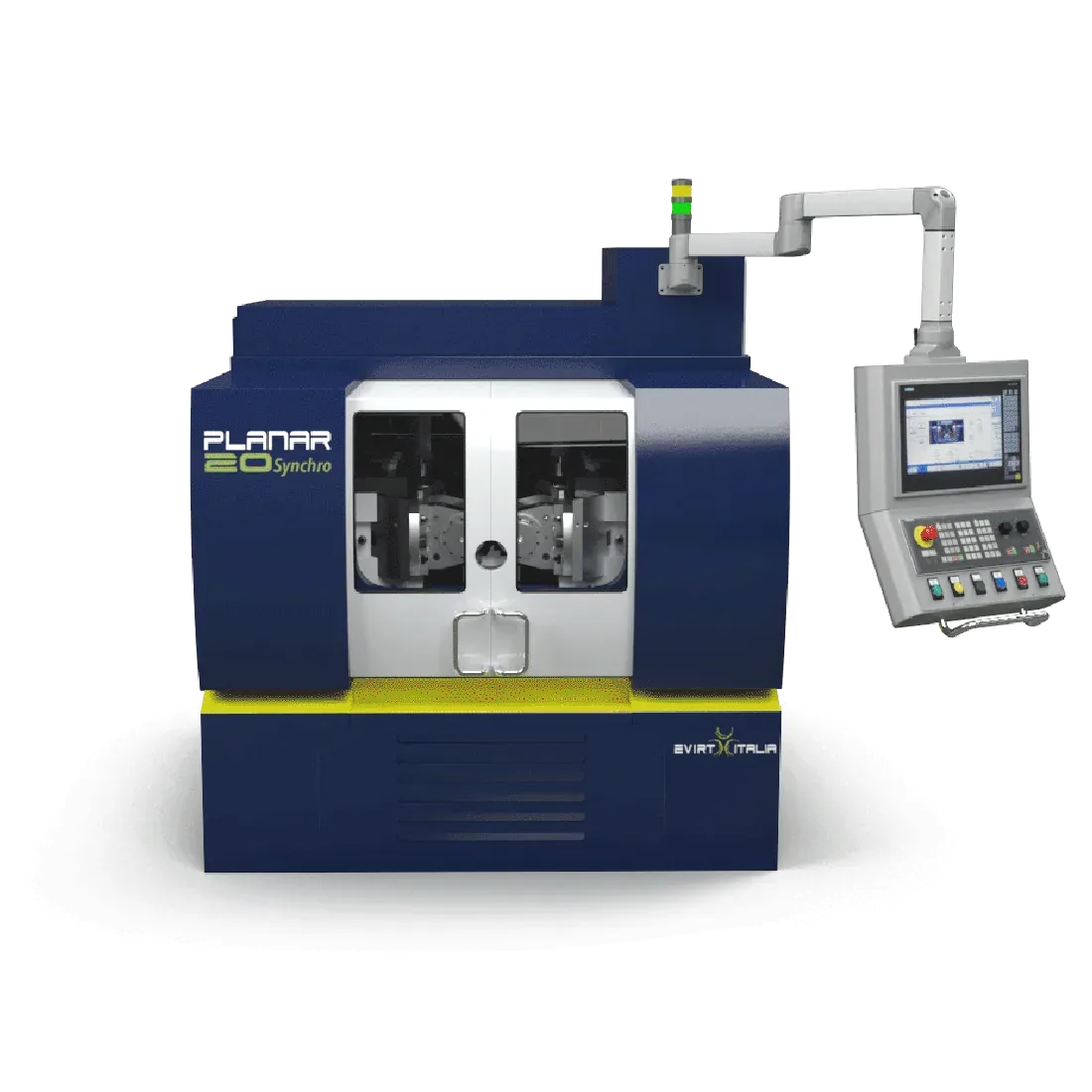

Two-slide thread rolling machine
PLANAR Series
Two independent slides for symmetric or asymmetric rolling of splines, ISO threads and ball screws. Approved for C3 class ball screws up to HRC 32.
200–1,200 kN (44,960–269,770 lbf)
More info

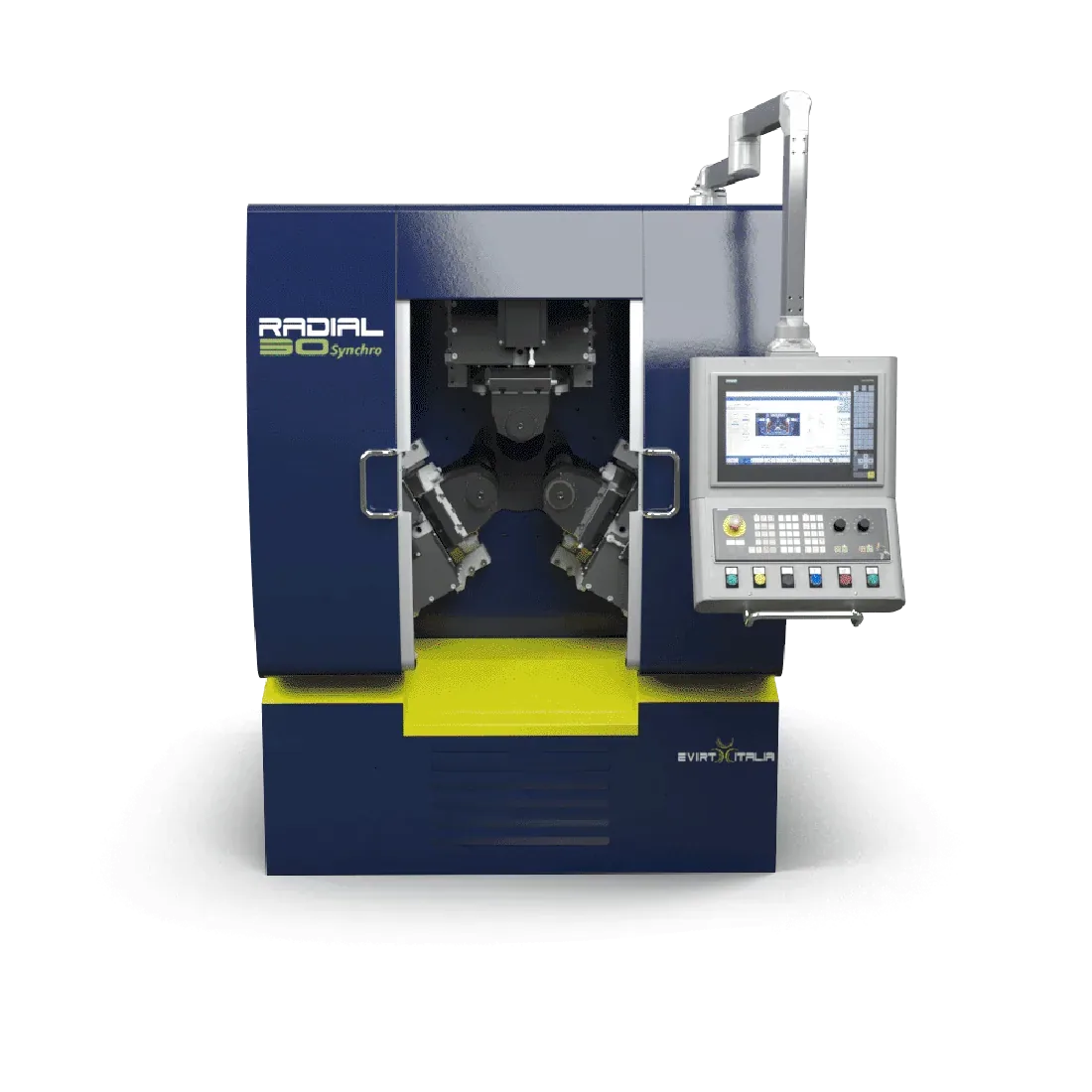

Three-die rolling machine for tubes
RADIAL Series
Three pushing heads and three spindles for threading and cold forming hollow parts: pipe nipples, hydraulic and nuclear pipes, columns and reinforcing screws.
100–1,500 kN (22,480–337,210 lbf)
More info

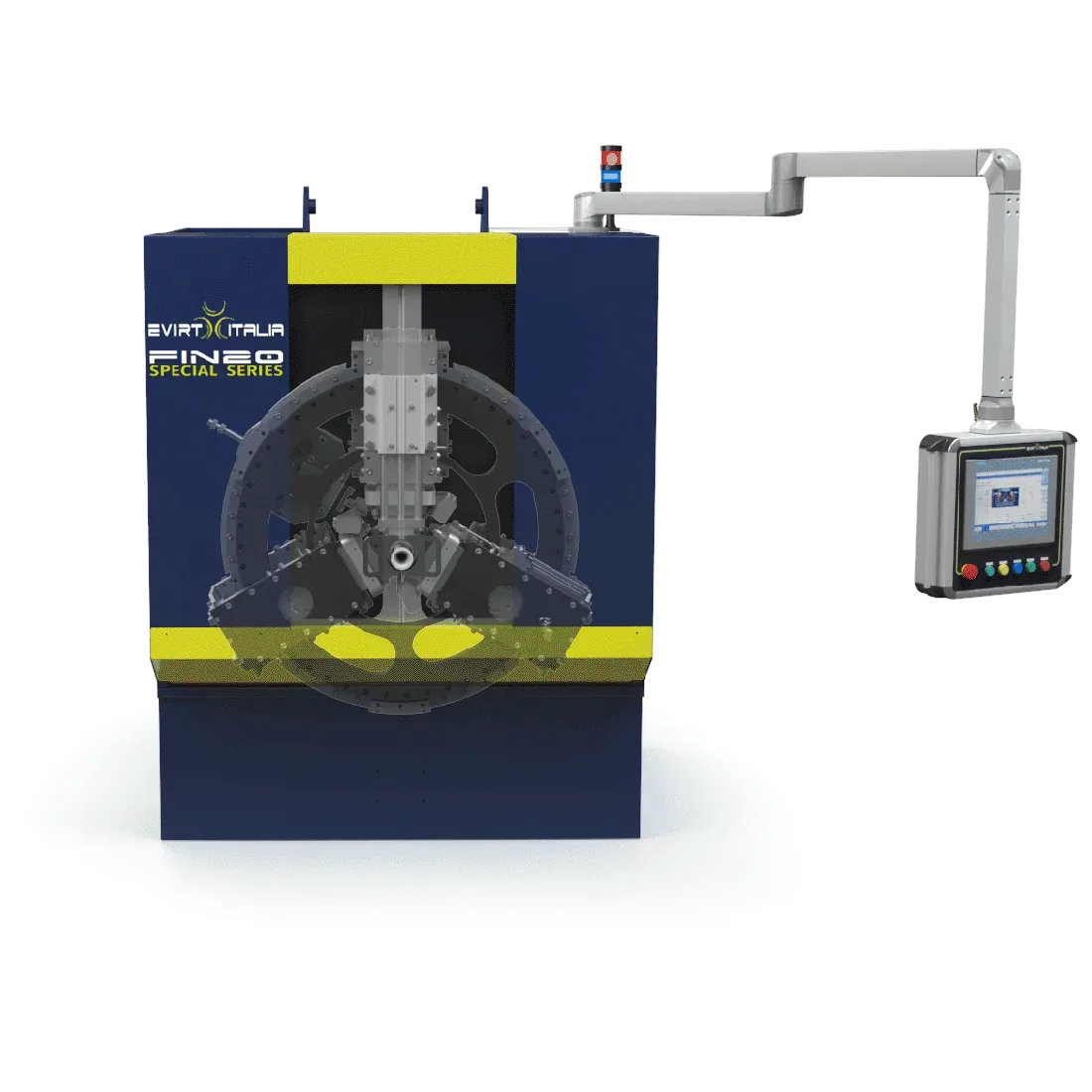

Finning, burnishing, corrugating
SPECIAL Series
Custom machines beyond standard rolling: FINs for extruded finned tubes, BMs for burnishing and superfinishing, CMs for corrugating thin-wall pipe.
FINs up to 2,400 kN (539,550 lbf)
More info
Automation
1 model
Loading, handling and integration around the rolling machine.

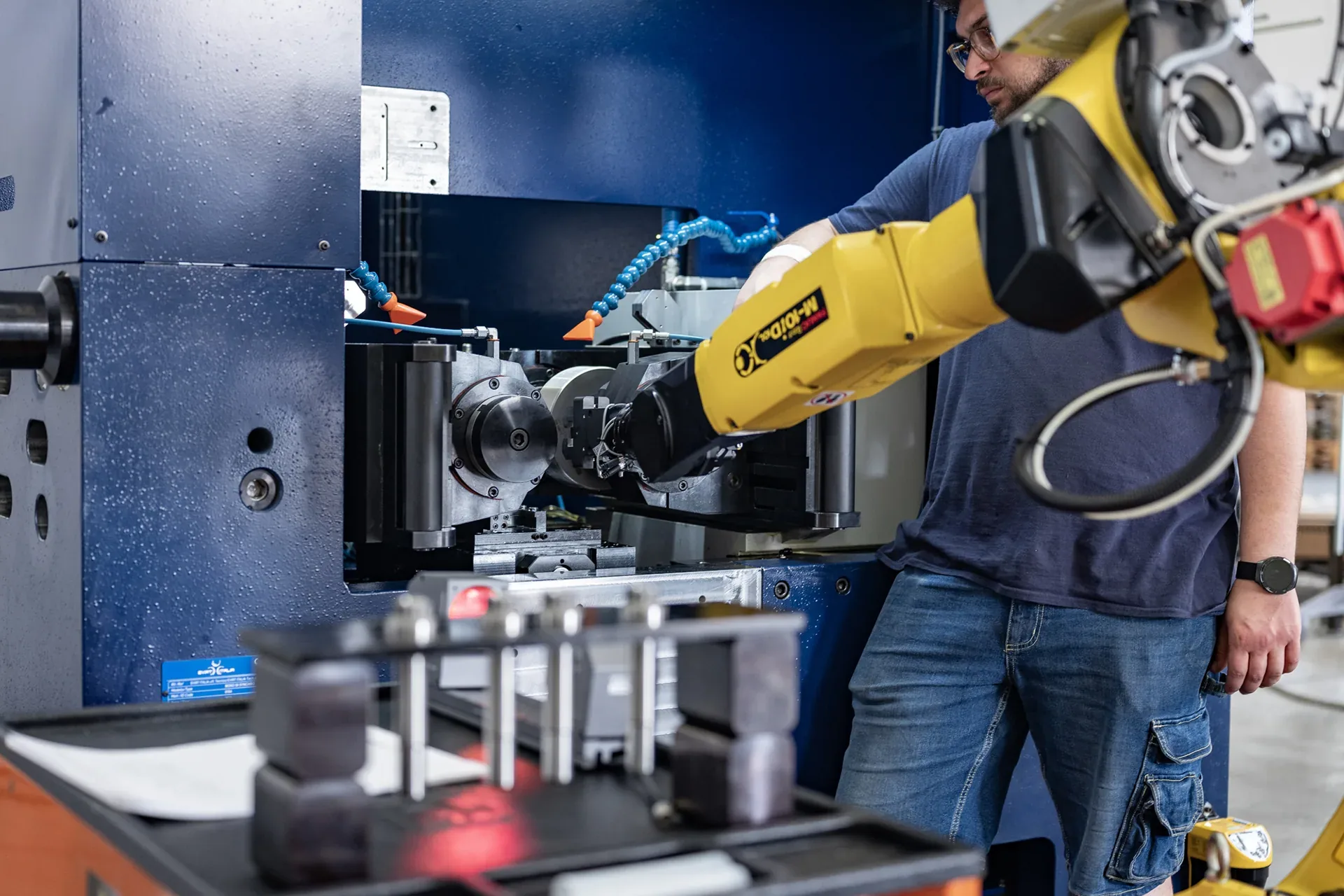

Loaders, robots, integrated lines
Rolling automation
Load stands, automatic tailstocks, robotic handling, vibrating and belt feeders, and handling for parts up to 12 m (39 ft) long.
More infoVideo
EVIRT Italia MONO series automatic rolling machine
Flagship series · EVIRT RADIAL
Three-die rolling up to 1,500 kN (337,210 lbf)
Three pushing heads and three spindles for threading and cold forming hollow parts: pipe nipples, hydraulic and nuclear pipes, columns and reinforcing screws.
100–1,500 kN (22,480–337,210 lbf)
Applications
Industries and parts
Automotive
Turbocharger shafts, cylinder head screws, flywheel bolts, connecting rod screws and wheel hub components.
Oil and gas
Double end and fully threaded studs, ACME threaded bar, piston rods and downhole tool components.
Aerospace
Threaded parts for ducting, fuel systems and landing gear.
Motion and ball screws
Ball screws, lead screws, worm profiles, splines and trapezoidal threads.
Pipe and fittings
Tapered and straight nipples, hydraulic pipes, connecting pipes and finned heat-exchanger tubes.
Construction and power
Reinforcing screws, columns, pillars and threaded parts for power generation and transmission.
Specifications
EVIRT Italia thread rolling machine specifications
Show technical data (16 models)
Swipe sideways to see all columns.
Model
Max. rolling force
Workpiece diameter
Max. infeed rolling length
Weight
MONO 10
100 kN (22,480 lbf)
2–60 mm (0.08–2.36 in)
60 mm (2.36 in)
1,500 kg (3,310 lb)
MONO 20
200 kN (44,960 lbf)
2–90 mm (0.08–3.54 in)
160 mm (6.30 in)
4,800 kg (10,580 lb)
MONO 30
300 kN (67,440 lbf)
3–100 mm (0.12–3.94 in)
200 mm (7.87 in)
6,300 kg (13,890 lb)
MONO 50
500 kN (112,400 lbf)
5–150 mm (0.20–5.91 in)
240 mm (9.45 in)
13,800 kg (30,420 lb)
MONO 100
1,000 kN (224,810 lbf)
10–220 mm (0.39–8.66 in)
310 mm (12.20 in)
18,300 kg (40,340 lb)
PLANAR 20
200 kN (44,960 lbf)
2–156 mm (0.08–6.14 in)
175 mm (6.89 in)
8,200 kg (18,080 lb)
PLANAR 30
300 kN (67,440 lbf)
2–160 mm (0.08–6.30 in)
219 mm (8.62 in)
10,300 kg (22,710 lb)
PLANAR 50
500 kN (112,400 lbf)
2–190 mm (0.08–7.48 in)
245 mm (9.65 in)
13,120 kg (28,920 lb)
PLANAR 80
800 kN (179,850 lbf)
2–204 mm (0.08–8.03 in)
300 mm (11.81 in)
16,476 kg (36,320 lb)
PLANAR 120
1,200 kN (269,770 lbf)
2–306 mm (0.08–12.05 in)
310 mm (12.20 in)
25,000 kg (55,120 lb)
RADIAL 10
100 kN (22,480 lbf)
14–85 mm (0.55–3.35 in)
65 mm (2.56 in)
3,250 kg (7,170 lb)
RADIAL 20
200 kN (44,960 lbf)
20–100 mm (0.79–3.94 in)
120 mm (4.72 in)
7,550 kg (16,640 lb)
RADIAL 30
300 kN (67,440 lbf)
24–110 mm (0.94–4.33 in)
130 mm (5.12 in)
9,600 kg (21,160 lb)
RADIAL 50
500 kN (112,400 lbf)
27–140 mm (1.06–5.51 in)
140 mm (5.51 in)
11,200 kg (24,690 lb)
RADIAL 100
1,000 kN (224,810 lbf)
32–250 mm (1.26–9.84 in)
155 mm (6.10 in)
13,800 kg (30,420 lb)
RADIAL 150
1,500 kN (337,210 lbf)
45–350 mm (1.77–13.78 in)
250 mm (9.84 in)
24,500 kg (54,010 lb)

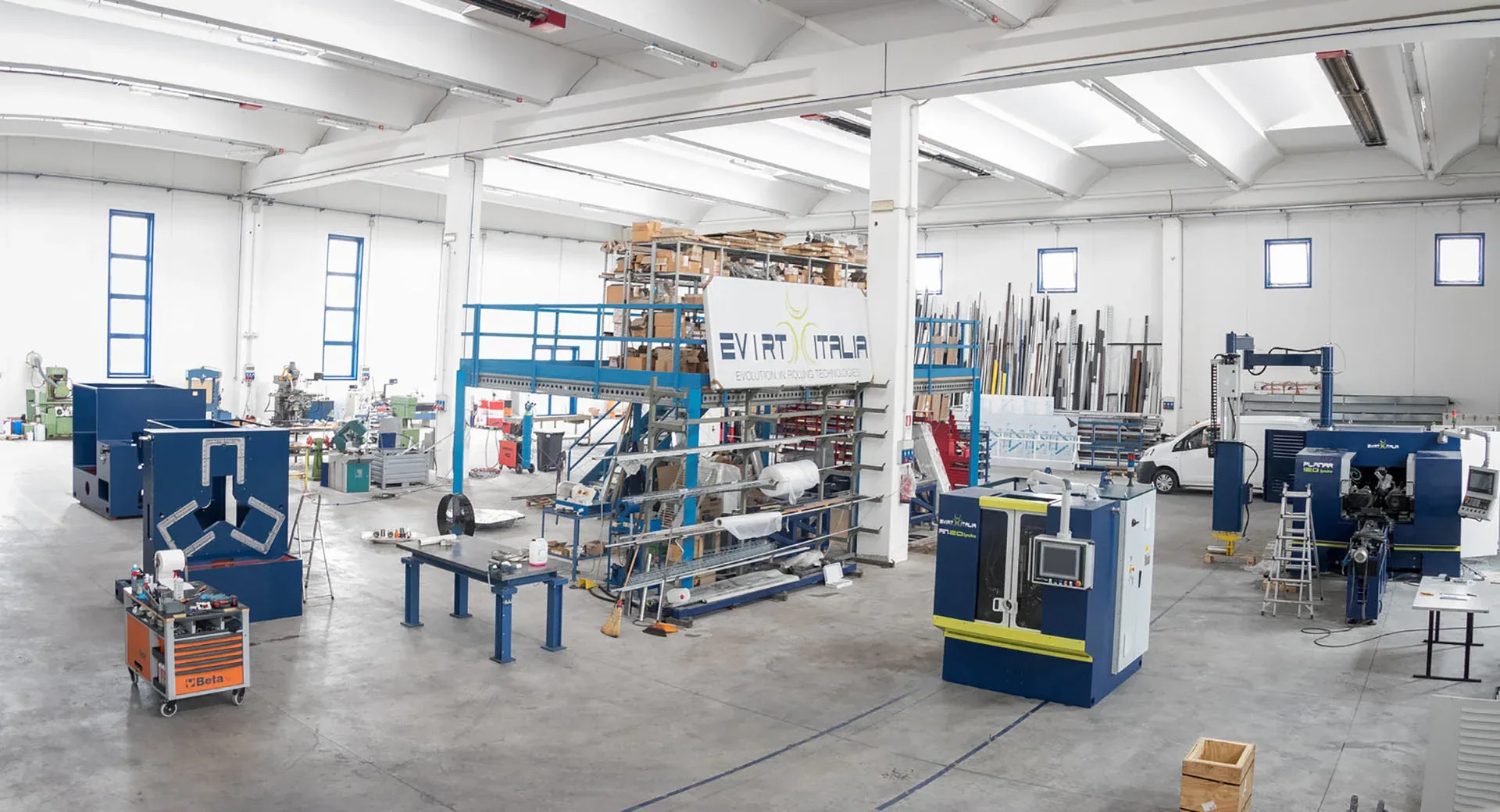

About EVIRT Italia
Rolling machine specialists from Verona, Italy
EVIRT Italia was founded by industry experts with over 50 years of experience in rolling machine design. The company designs and builds two-die and three-die rolling machines in Vigasio, near Verona, plus dedicated rolling equipment and automation for complete automatic solutions.
EVIRT also provides technical support, maintenance and retrofitting, including on rolling machines from other brands. Prella Technologies handles quote, delivery, start-up and service for EVIRT machines in North America.
50+ years of rolling know-how
4 machine series
Made in Vigasio (VR), Italy
Service on other brands too
Why buy through Prella
US-based sales and support
One team in East Dundee, IL for quotes, delivery, start-up and service across North America.
Configured to your application
Models, options and accessories selected with the manufacturer for your parts, process and plant.
Manuals one scan away
Every machine ships with a QR code linking to its manuals and drawings, matched to its serial number.
Thread rolling machines for US production: threads, splines and ball screws
Thread rolling cold-forms the profile instead of cutting it. The result is a stronger thread with a better surface finish and no chips. EVIRT Italia builds thread rolling machines for every stage of production. MONO machines run standard threads and profiles at short cycle times. PLANAR two-slide machines roll splines, ISO threads and C3 class ball screws. RADIAL three-die machines thread and cold-form tubes, pipe nipples and large hollow parts. Patented auto-pitching and automatic calculation of working parameters cut setup time when you change dies. Optional loaders, robots and feeders turn a single machine into an automated rolling cell.
Prella Technologies supplies EVIRT Italia thread rolling machines and automation to US and Canadian fastener makers, fitting producers and OEMs. We review your part drawing, material and volume with EVIRT and recommend the right series and model. Then we handle the quote, delivery, start-up and service. EVIRT also supports, maintains and retrofits rolling machines from other brands, so Prella can help you keep an existing fleet running while you plan new equipment.
EVIRT Italia: frequently asked questions
What is the difference between MONO, PLANAR and RADIAL machines?
MONO uses one moving slide and two spindles for standard threads and profiles at high output. PLANAR has two independent slides for precision work such as splines and ball screws, with symmetric or asymmetric rolling. RADIAL uses three dies and three pushing heads for hollow parts like tubes and pipe nipples.
Can EVIRT machines roll ball screws?
Yes. EVIRT states the PLANAR series is tested and approved for producing C3 class ball screws in various materials up to HRC 32. The RADIAL series is also validated for ball screws up to C3 class. Ask Prella for a feasibility review of your part drawing and material.
What rolling force and part sizes are available?
Standard machines range from 100 kN (22,480 lbf) to 1,500 kN (337,210 lbf) of rolling force. Workpiece diameters run from 2 mm (0.08 in) on MONO and PLANAR models up to 350 mm (13.78 in) on the RADIAL 150. SPECIAL series FINs machines reach 2,400 kN.
Do you service thread rolling machines from other brands?
EVIRT Italia offers technical support, maintenance and retrofitting, including on rolling machines from other brands. Prella Technologies coordinates this work for customers in North America. Contact us with the machine make, model and the issue, and we will review the options with EVIRT.
Request a quote for an EVIRT thread rolling machine
Send us your part drawing, material and target output. We will match the right series and automation and prepare a quote.
