1971
Founded in Lonate Pozzolo, Italy
5 years
Warranty on vises, up to
0.005 mm
Zero point repeatability (0.0002 in)
24,000 rpm
Driven tools, up to
Product range
Gerardi product families
Grouped the way Gerardi builds them: traditional, flexible and 5-axis clamping, quick positioning, chucks, tooling for machining centers and lathes, and automation.
Traditional clamping
5 models
Modular vises for vertical and horizontal CNC machining centers, for milling, drilling and tapping.

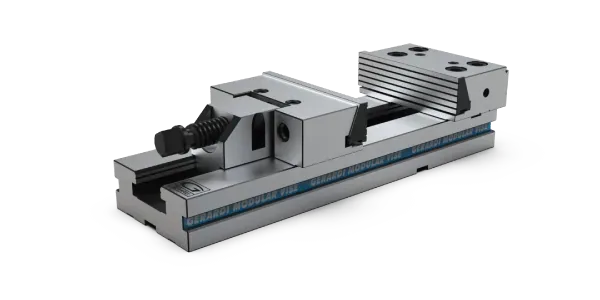

Standard modular vise
STD Vises
Gerardi's best-known vise. Solid guided jaws with pull-down action, ground base and keyways for fast, repeatable setups.
Accuracy ±0.02 mm (±0.0008 in)
More info

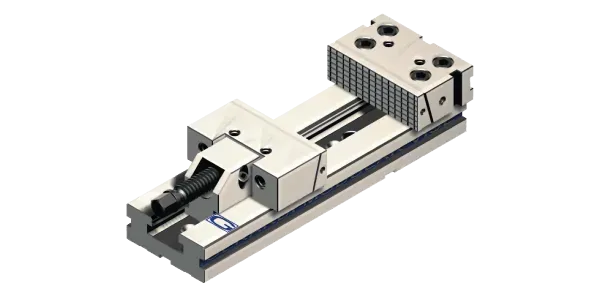

Quick-change jaw vise
StandardFLEX Vises
Evolution of the STD vise. A comb system lets operators swap jaw plates by hand, without tools, and reposition them accurately.
More info

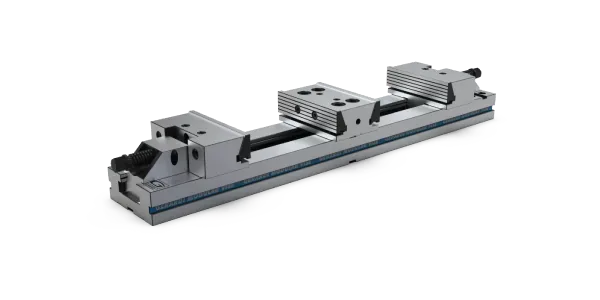

Long-base vise
XL Vises
Like the STD vise with a longer base. Switch between double clamping and single clamping with a very wide opening.
More info

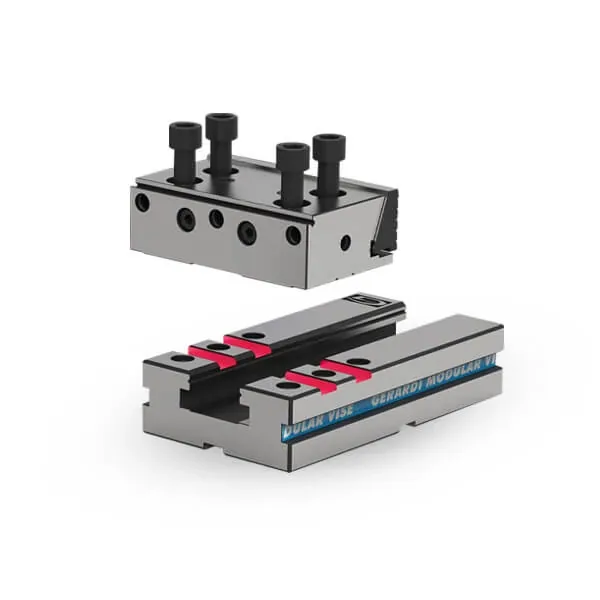

Fixed and movable vise sections
Modular Elements
Independent fixed and movable vise sections. Clamp large workpieces directly on the machine table with standard parts.
More info
High-accuracy vise

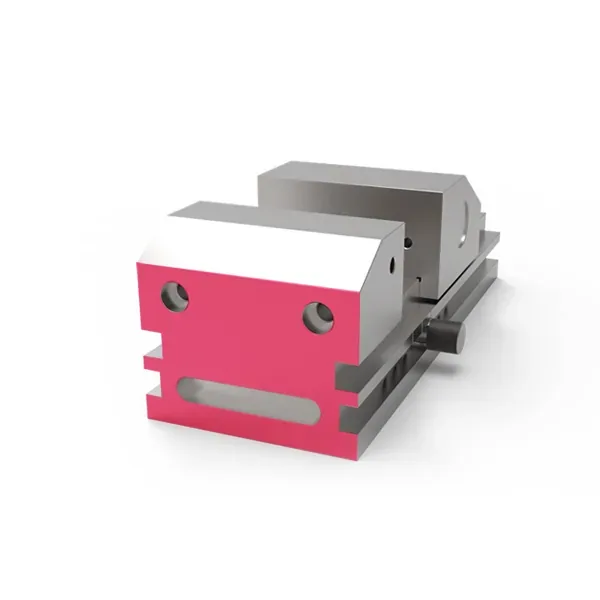

OK Series
Case-hardened HRC 60 steel vise for grinding, precision milling and quality control. Fixed jaw and base in one piece.
Squareness 0.003 mm per 100 mm
More info
Flexible clamping
2 models
Vise systems that change configuration to clamp one, two or many parts.

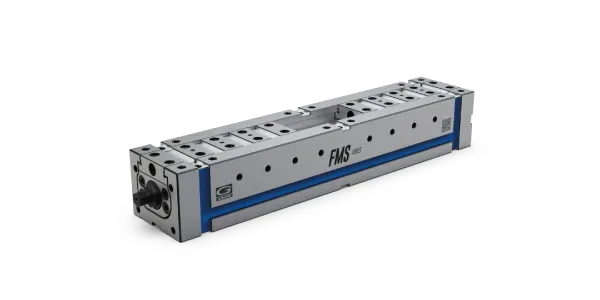

Single, double, self-centering
FMS Vises
Patented system: one vise body becomes single, double or self-centering by changing jaws. Base twice as thick as STD.
Accuracy ±0.005 mm (±0.0002 in)
More info

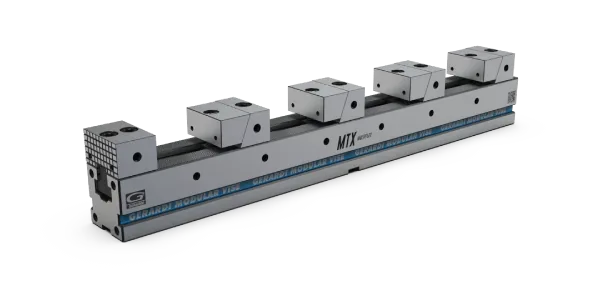

Multiple-part clamping
Multiflex Vises
Clamp several workpieces of different sizes at once. Jaws position anywhere on the ground rack teeth of the base.
More info
5-axis clamping
6 models
Compact, rigid vises and fixtures for 5-sided machining.

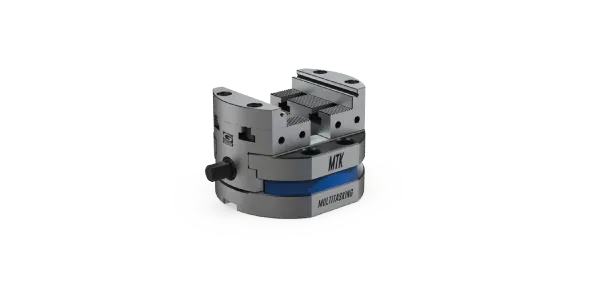

Self-centering 5-axis vise
Multitasking Vises
Compact vise with rounded base. Self-centering or eccentric jaw setting, serrated base and risers for hard-to-reach areas.
More info
Self-centering grip vise

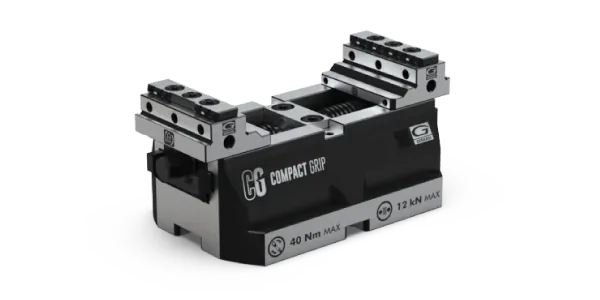

CompactGrip Vises
Compact, high-force self-centering vise with GRIP jaw inserts. Converts from single to double clamping. Zero Point ready.
More info
Single, double, self-centering

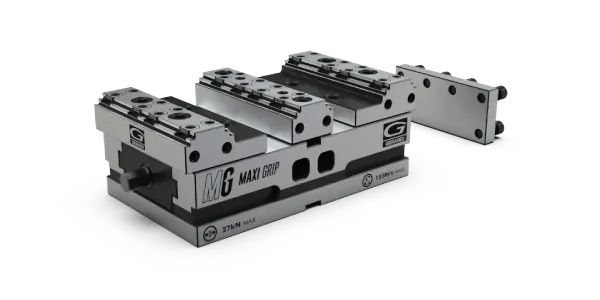

MaxiGrip Vises
Combines CompactGrip and FMS concepts. Hardened, ground base and slides. For 3- to 5-axis machines, Zero Point compatible.
More info

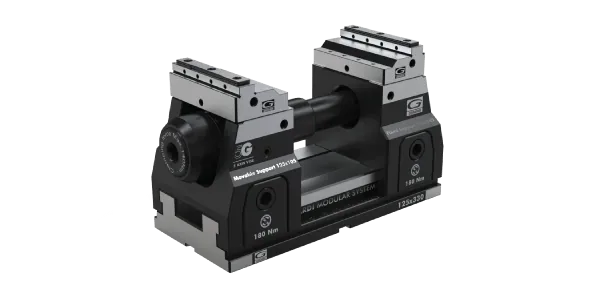

High-clamping 5-axis vise
5G Vises
Screw close to the clamping area for high gripping without losing force. Quick-change jaws, Zero Point and Quick Change compatible.
Opening up to 510 mm (20.1 in)
More info

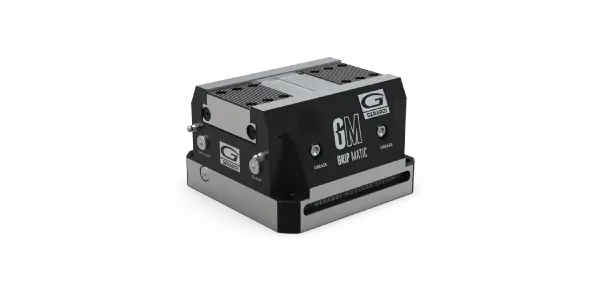

Pneumatic or hydraulic vise
GripMatic Vises
Self-centering vise actuated by air or oil, controllable by the CNC. Built for robot loading and unattended machining.
Up to 43 kN (9,670 lbf) hydraulic
More info
Irreversible dovetail fixture

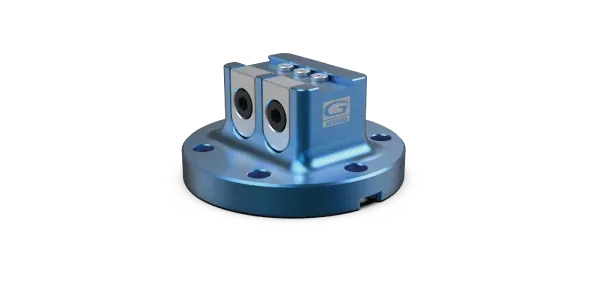

Dove Tail
Clamps parts by a pre-machined 60° dovetail for high rigidity on 5-axis work. Pyramid risers hold four units.
More info
Tombstones and quick positioning
3 models
Fixture bases and quick-change interfaces that cut machine setup time.

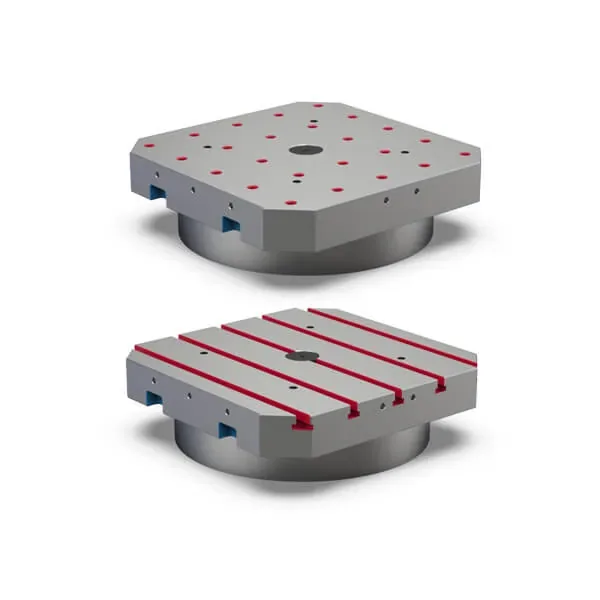

Cubes, tombstones, plates
Tombstones & Pallets
Cast iron G30 cubes, two-sided tombstones, angle plates and pallets, double stress-relieved. European or Japanese standards.
More info

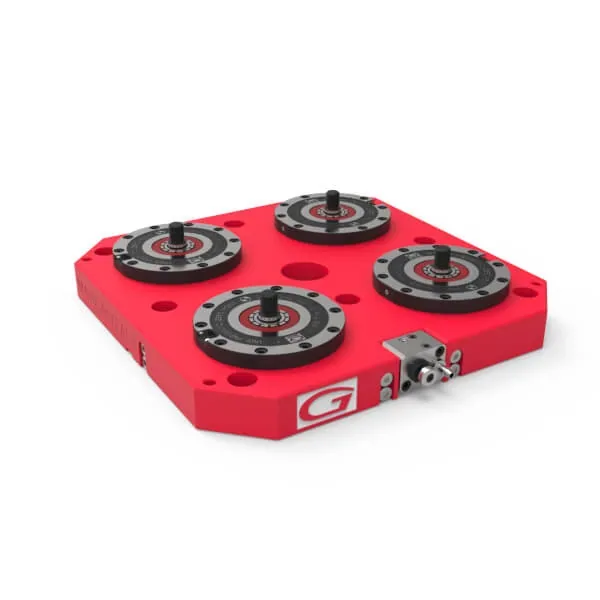

Pneumatic quick clamping
Zero Point System
Spring-locked, air-released positioning system. Fixtures go on and off the pallet fast and return to the same position.
Repeatability 0.005 mm (0.0002 in)
More info
Mechanical quick change

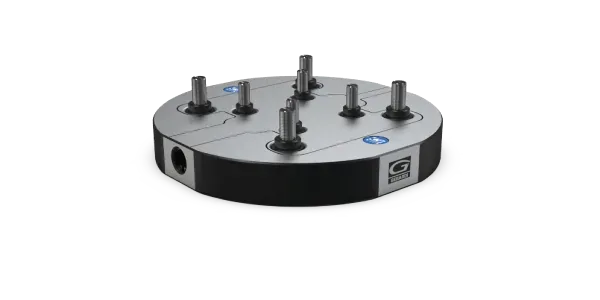

Quick Change Plates
Mechanical system for fast positioning and clamping of fixtures. Round, square or rectangular, single or multiple, 52 or 96 mm pitch.
More info
Self-centering chucks
1 model
Manual chucks for heavy turning and milling.

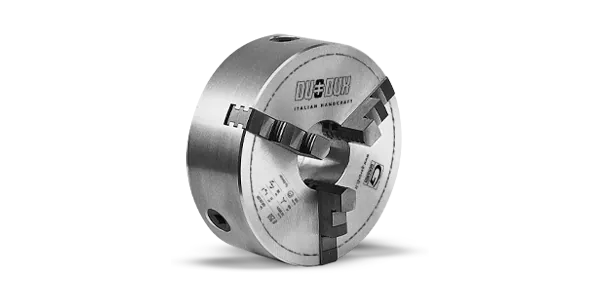

Double-guide manual chuck
DuoDux Chucks
Self-centering manual chuck with double-guided integral jaws and one-piece cast iron body. Balanced to ISO 3089.
Ø160–430 mm (6.3–16.9 in)
More info
Tooling for machining centers
3 models
Angle heads and spindle speeders that extend what a machining center can reach.
Integral shank and shaft

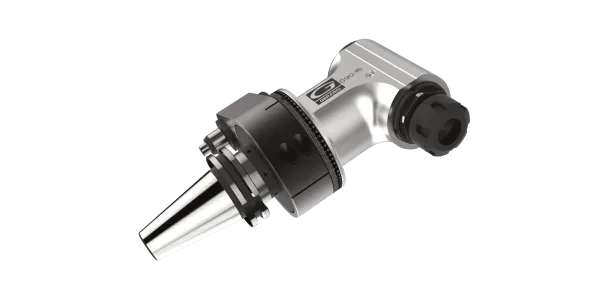

Classic Line Angle Heads
Angle heads with the input shaft integral with the drive taper for maximum rigidity. ATC, MTC, Mini, Slim and Extended series.
Up to 10,000 rpm
More info
Modular angle heads

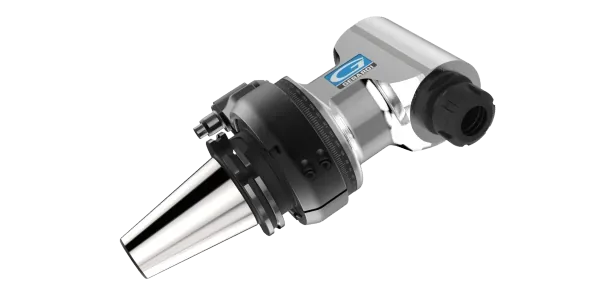

Evolution Line Angle Heads
One head body with interchangeable drive tapers to fit different machine spindles. Fixed or adjustable 0–90° output.
Coolant up to 70 bar (1,015 psi)
More info
High-speed attachment

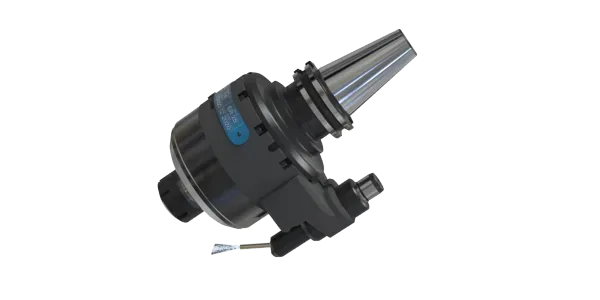

Spindle Speeders
Speed increasers for drilling and high-speed machining on standard and ATC machines. Long-life grease, nearly maintenance free.
Up to 35,000 rpm
More info
Tooling for CNC lathes
1 model
Live tooling for turning centers and turrets.

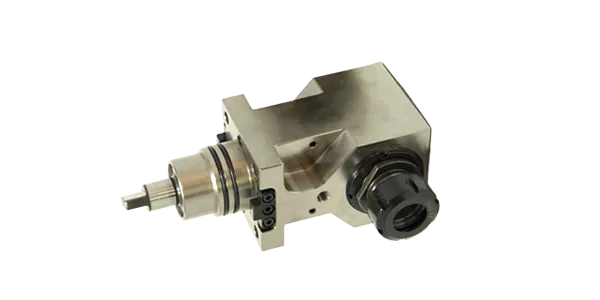

VDI and BMT live tooling
Driven Tools
Axial, radial, offset and adjustable driven tools for the turrets of the most popular CNC lathe builders. More than 1,000 types.
Up to 24,000 rpm
More info
Automation
2 models
Hardware for robot-tended machining.

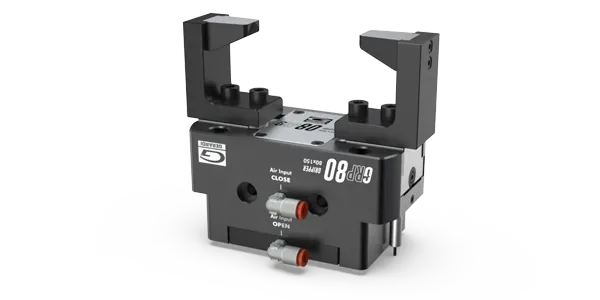

Robot gripper jaws
Grippers
Two- and three-jaw grippers in anodized aluminum for robot loading of parts and fixtures. Gripper change units available.
More info

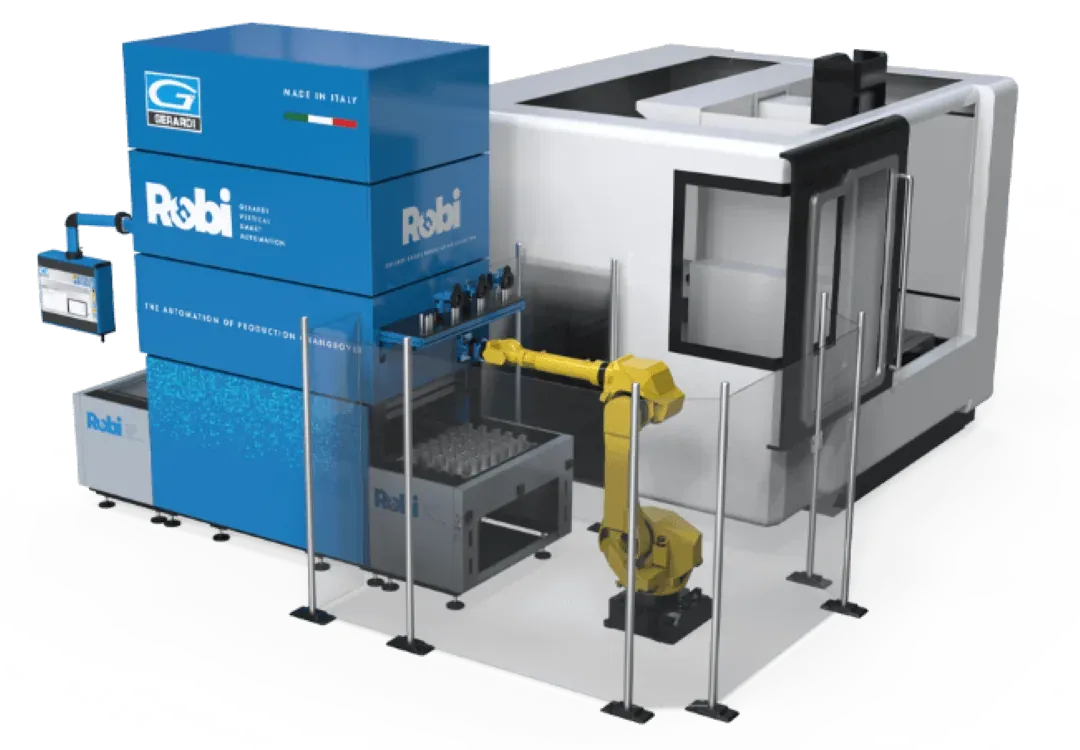

Vertical automation cell
ROBI
Vertical storage, FANUC robot, grippers, vises and Zero Point, run by supervisor software. No part program or robot experience needed.
56 trays, up to 250 kg (551 lb) each
More info Featured · Gerardi Zero Point
Change setups in seconds with 0.005 mm (0.0002 in) repeatability
Spring-locked, air-released positioning system. Fixtures go on and off the pallet fast and return to the same position.
Repeatability 0.005 mm (0.0002 in)
Applications
Where Gerardi workholding works
Vertical machining centers
Modular vises and gang setups for milling, drilling and tapping on the table.
Typical choice: STD Vises
Horizontal machining centers
Tombstones, cubes and vise towers for multi-pallet production.
Typical choice: Tombstones & Pallets

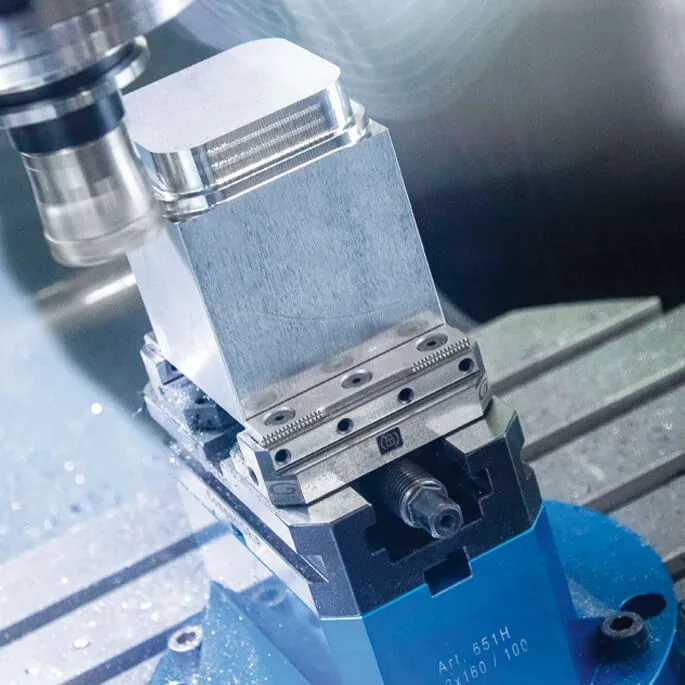

5-axis machining
Self-centering vises and dovetail fixtures for machining five sides in one setup.
Typical choice: Multitasking Vises
CNC turning centers
VDI and BMT driven tools add milling, drilling and tapping on the lathe.
Typical choice: Driven Tools
Lights-out automation
GripMatic vises, grippers and Zero Point for robot loading and unattended shifts.
Typical choice: GripMatic Vises
Grinding and inspection
OK series vises hold parts square for grinding and quality control.
Typical choice: OK Series
Specifications
Key figures from Gerardi
Show technical data (10 models)
Swipe sideways to see all columns.
Product
Key figure
Value
STD / XL / Multiflex vises
Accuracy
±0.02 mm (±0.0008 in)
FMS vises
Accuracy
±0.005 mm (±0.0002 in)
5G vises
Max opening / clamping height
510 mm (20.1 in) / 190 mm (7.5 in)
GripMatic vises (hydraulic)
Clamping force
15 / 32 / 43 kN (3,370 / 7,190 / 9,670 lbf)
GripMatic vises (pneumatic)
Clamping force
5.1 / 16 / 22 kN (1,150 / 3,600 / 4,950 lbf)
Zero Point System
Repeatability
0.005 mm (0.0002 in)
DuoDux chucks
Diameter range
160–430 mm (6.3–16.9 in)
Angle heads
Max speed / internal coolant
10,000 rpm / 70 bar (1,015 psi)
Spindle speeders
Max speed
35,000 rpm
Driven tools
Max speed / internal coolant
24,000 rpm / up to 100 bar (1,450 psi)
About Gerardi
The company behind the modular vise
Gerardi S.p.A. was founded in 1971 in Lonate Pozzolo, near Milan Malpensa airport. It was the first company to offer precision modular vises for machine tools and the first Italian company to design a complete modular steel clamping system.
Today the range covers three areas: workholding for CNC machining centers, tooling for machining centers and CNC lathes, and automation. Vises and accessories are modular, so components interchange with perfect alignment from one setup to the next.
Since 1971
Lonate Pozzolo, Italy
Up to 5-year warranty on vises
Workholding, tooling and automation
Why buy through Prella
US-based sales and support
One team in East Dundee, IL for quotes, delivery, start-up and service across North America.
Configured to your application
Models, options and accessories selected with the manufacturer for your parts, process and plant.
Manuals one scan away
Every machine ships with a QR code linking to its manuals and drawings, matched to its serial number.
Gerardi machine vises and workholding for US machine shops
Gerardi modular vises are built around one idea: every vise and accessory interchanges with the others, with perfect alignment. Shops start with STD or StandardFLEX vises on a vertical machining center, then add XL vises, modular elements or vise towers as jobs change. For multi-part production, FMS and Multiflex vises clamp several workpieces at once. For 5-axis machining, CompactGrip, MaxiGrip, Multitasking and 5G vises give self-centering clamping with access to five sides. Tombstones, Quick Change plates and the Zero Point system cut setup time on horizontal and vertical machines, so spindles spend more time cutting.
On the tooling side, Gerardi angle heads let a machining center drill, mill and tap at 90° or adjustable angles, while spindle speeders add rpm for small tools. For turning centers, Gerardi driven tools fit VDI and BMT turrets. Gerardi also offers grippers and the ROBI automation cell for robot-tended machining. Prella Technologies handles quote, delivery, start-up and service for Gerardi products across North America.
Gerardi: frequently asked questions
What makes Gerardi vises modular?
Gerardi vises and accessories are designed to interchange with perfect alignment. Bases are ground and checked on a CNC measuring machine, with keyways or positioning holes for repeatable placement. You can combine vises side by side, mount them vertically on towers, or swap jaws to change from single to double or self-centering clamping.
Which Gerardi vise is best for 5-axis machining?
Gerardi offers several vises designed for 5-axis machining centers: Multitasking, CompactGrip, MaxiGrip, 5G and the automated GripMatic. They are compact and self-centering for access to five sides of the part. Most are Zero Point ready. Prella can help match the vise to your part size, material and machine.
Do Gerardi driven tools fit my CNC lathe?
Gerardi offers more than 1,000 driven tool types in VDI and BMT versions to fit the turrets of the most popular CNC lathe builders. Options include axial, radial, offset and adjustable-angle tools, plus double or multiple outputs. Send Prella your lathe make, model and turret type for a matching quote.
How does the Gerardi Zero Point system reduce setup time?
The Zero Point system is normally closed: springs lock the pull stud and compressed air releases it. Fixtures and vises with pull studs drop onto the pallet and lock in position with 0.005 mm (0.0002 in) repeatability. Gerardi states setup time savings of up to 95% compared with conventional fixture changeovers.
Need Gerardi workholding or angle heads?
Tell us your machine, part and process. Prella will recommend the right Gerardi vise, fixture or tool and send a quote with delivery and support in the US.
