SIR Meccanica portable line boring and welding machines
Portable machine tools that bore, weld, face, turn and thread on site. Repair worn bores and flanges without dismantling equipment or shipping parts to a machine shop.
1991
Building portable machine tools
136
Countries served
8
Product series
18,000 m²
Production site (193,750 sq ft)
Product range
SIR Meccanica machine series
Eight series of portable machine tools. Each one mounts directly on the workpiece, so large components stay in place while you machine them.
In-line boring and overlay welding
4 models
Restore worn or oval bores, pin joints and tubular bodies to original size in one setup.
Portable line boring and bore welding
WS Series
Eight models for in-line boring and overlay welding of holes and pin joints on heavy equipment, from W Smaller to WS7 Plus Triphasic.
Ø 22–1,700 mm (0.87–66.9 in)
More info

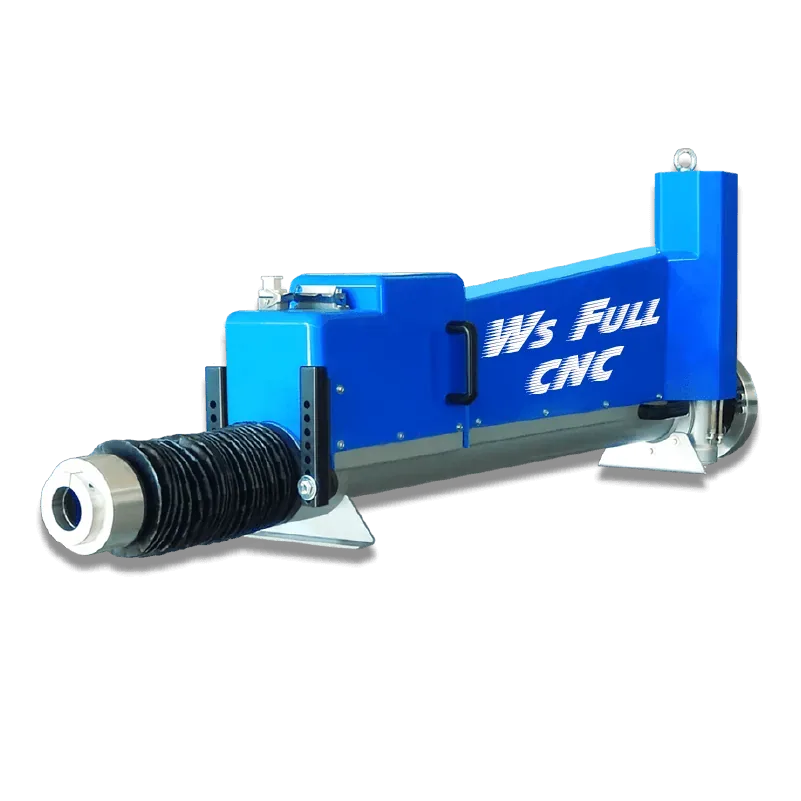

CNC portable boring machine
WS Full CNC Series
WS platform with a CNC head and touch-screen panel for tapers, profiles, threads, grooves, bevels and faced surfaces inside the bore.
Ø 110–1,700 mm (4.33–66.9 in)
More info

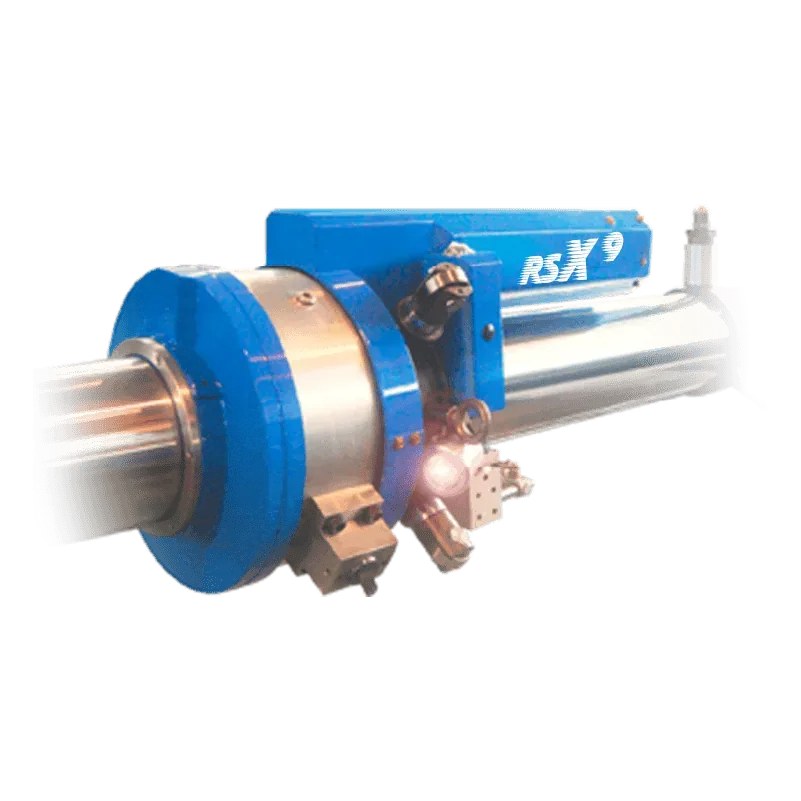

Precision boring for long bores
RSX9 Series
Electronically controlled portable boring machines for large components with long cylindrical cavities that conventional machines cannot reach.
Ø 500–1,200 mm (19.7–47.2 in)
More info

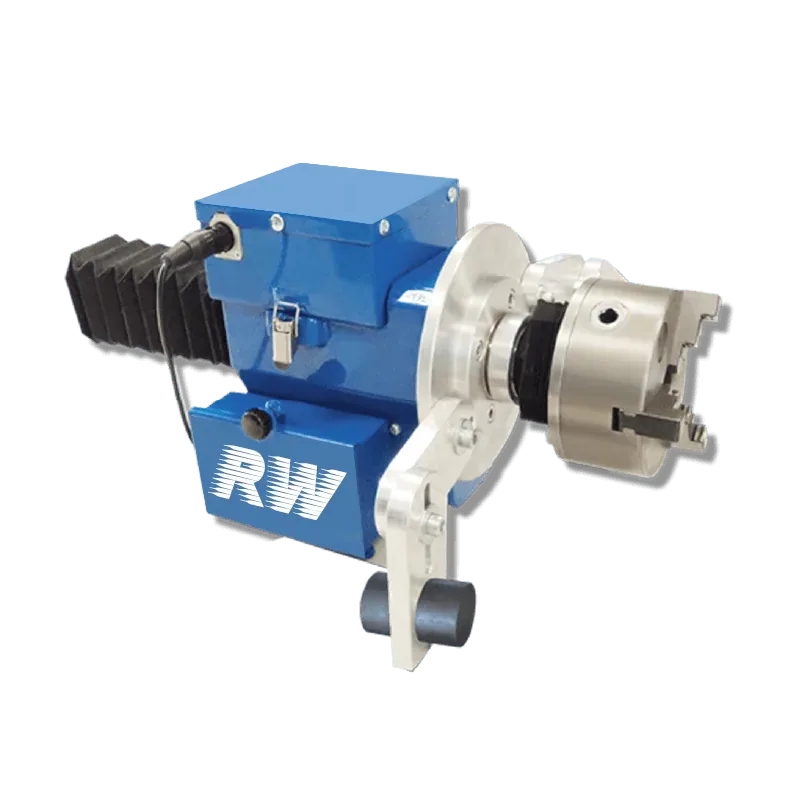

Portable bore welding machine
Rotary Welding Series
Semi-automatic machines for internal and external overlay welding of tubular bodies, with a control panel and display to monitor the job.
Ø 25–550 mm (0.98–21.7 in)
More info
Facing and turning
2 models
Machine flanges, faces and outside diameters on parts that cannot be moved or rotated.

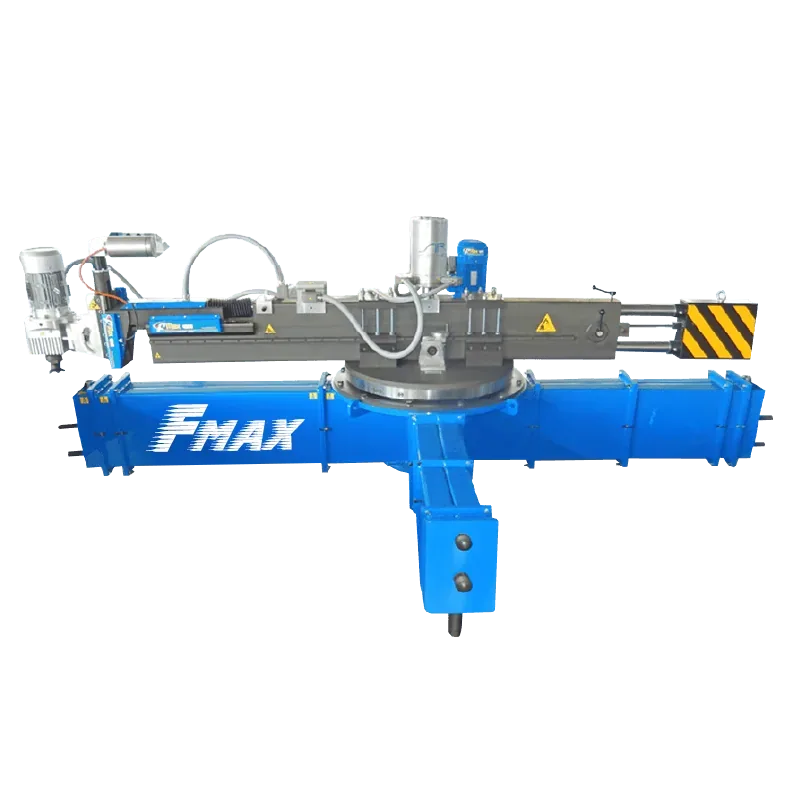

Portable flange facing machine
FMax Series
Five models for flange facing, milling, beveling and grooves on large axially symmetric bodies. Kits add turning, drilling, boring, tapping and welding.
Ø 350–6,000 mm (13.8–236.2 in)
More info

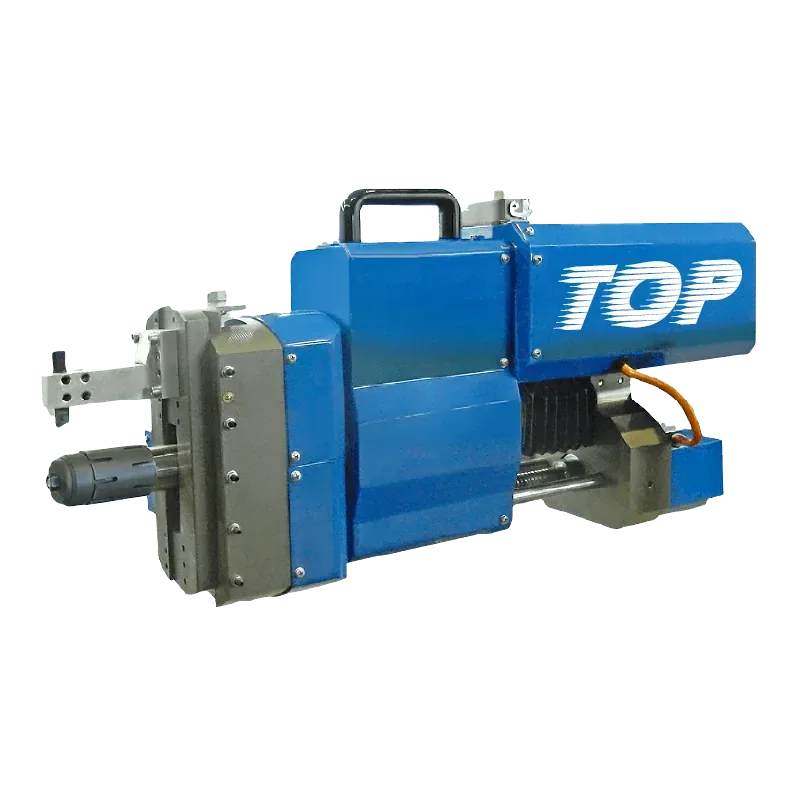

Portable CNC orbital lathe
TOP Series
Fully CNC orbital lathes that turn inside and outside surfaces of fixed tubular bodies, including tapered threads, facing and grooves, in any position.
Up to Ø 400 mm (15.75 in)
More info
Threading and linear cutting
2 models
Dedicated machines for internal threads and straight cuts on site.

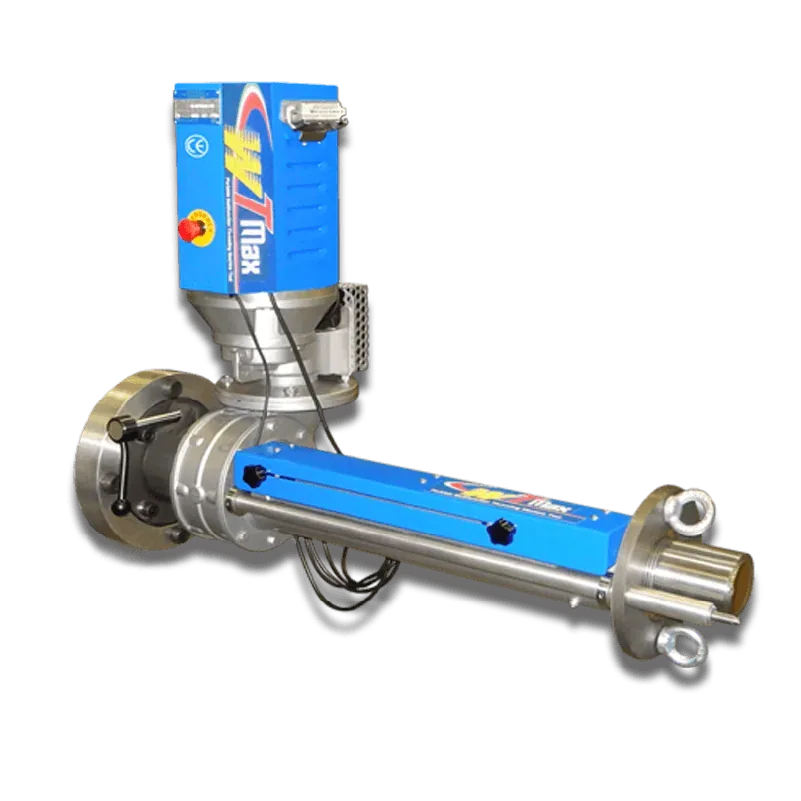

Portable internal threading machine
WTMax Series
Electronically controlled machines for internal cylindrical threads. Thread length, pitch, diameter and stroke can be configured to the job.
Ø 350 mm (13.78 in)
More info

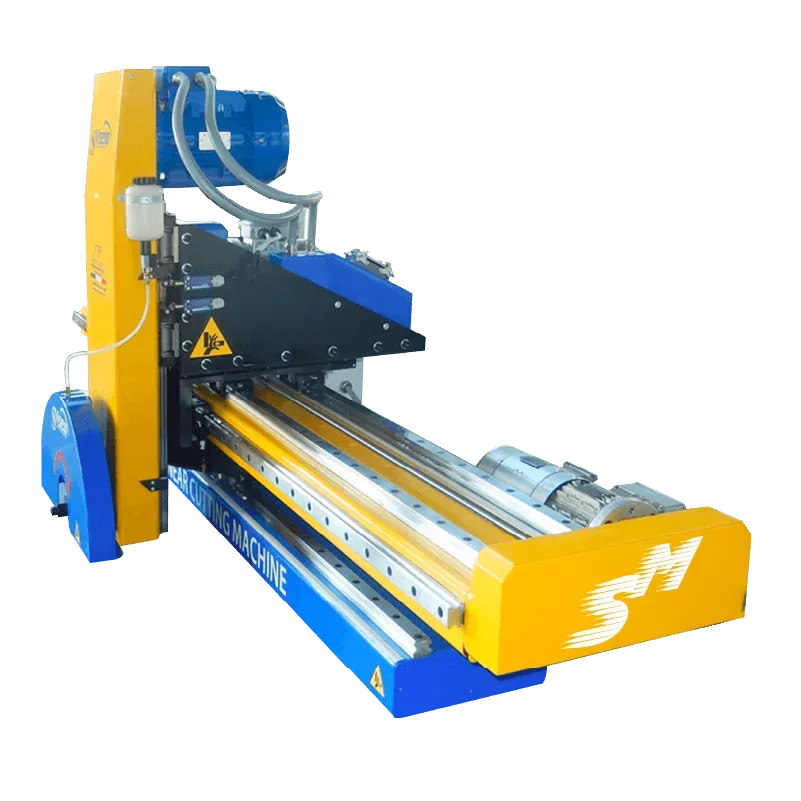

Portable linear cutting machine
SM 500 Series
Semi-automatic linear cutting machine for on-site repair work. Installs horizontally, vertically or in any position, with motorized, electronically controlled cutting moves.
2,280 mm (89.76 in) machining
More infoVideo

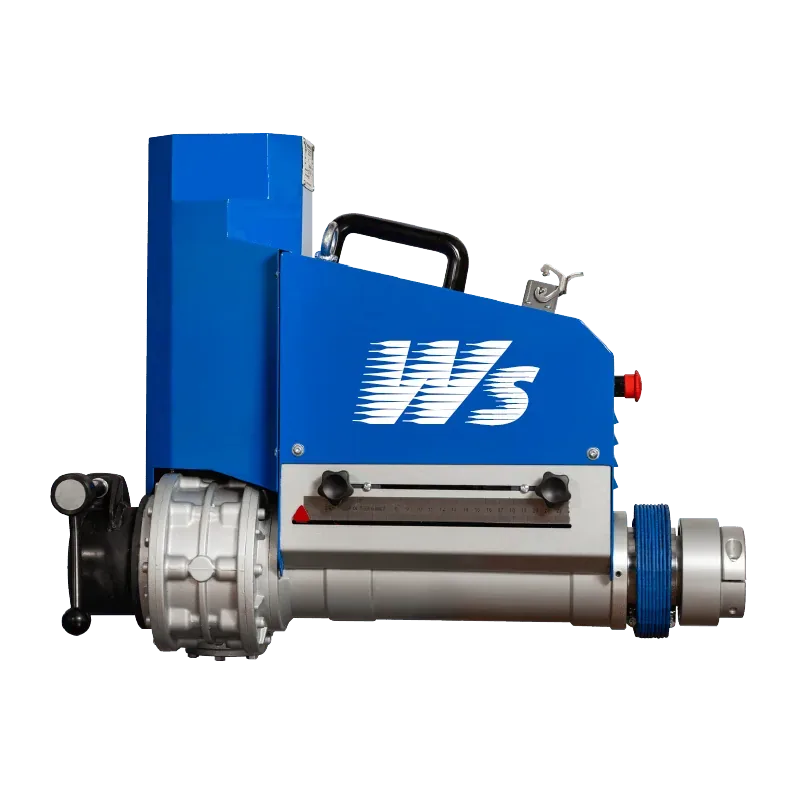

SIR Meccanica WS series portable line boring and welding
Flagship series · SIR Meccanica WS
Line bore and weld worn bores from Ø 22 to 1,700 mm (0.87–66.9 in)
Eight models for in-line boring and overlay welding of holes and pin joints on heavy equipment, from W Smaller to WS7 Plus Triphasic.
Ø 22–1,700 mm (0.87–66.9 in)
Applications
Where SIR Meccanica machines work
Earthmoving equipment
Line bore and weld up worn pin bores on excavators, loaders and dozers without pulling the machine apart.
Typical choice: WS Series
Shipyards
Machine bores, flanges and seats on vessels where components cannot go to a shop.
Typical choice: FMax Series
Oil and gas
Face flanges and turn pipe ends on site at plants, pipelines and offshore facilities.
Typical choice: FMax Series
Railway
Repair bores and joints on rolling stock and maintenance equipment with portable setups.
Typical choice: WS Series
Nuclear and power
Machine large axially symmetric components and flanges in place.
Typical choice: FMax Series
General industry
Restore holes, faces and threads on presses, mills and heavy machinery during maintenance.
Typical choice: WTMax Series
Specifications
SIR Meccanica machining diameter by model
Show technical data (25 models)
Swipe sideways to see all columns.
Series
Model
Machining diameter
WS
W Smaller
Ø 22–70 mm (0.87–2.76 in)
WS
WS1 Plus
Ø 22–180 mm (0.87–7.09 in)
WS
WS2 Compact
Ø 22–400 mm (0.87–15.75 in)
WS
WS2
Ø 22–400 mm (0.87–15.75 in)
WS
WS2 Plus
Ø 32–450 mm (1.26–17.72 in)
WS
WS3
Ø 32–800 mm (1.26–31.50 in)
WS
WS5
Ø 180–1,000 mm (7.09–39.37 in)
WS
WS7 Plus Triphasic
Ø 400–1,700 mm (15.75–66.93 in)
WS Full CNC
WS3 Dragster 600 / 800 / 1000
Ø 110–600 mm (4.33–23.62 in)
WS Full CNC
WS3 Full CNC
Ø 110–600 mm (4.33–23.62 in)
WS Full CNC
WS5 Full CNC
Ø 180–1,000 mm (7.09–39.37 in)
WS Full CNC
WS7 Plus Triphasic Full CNC
Ø 400–1,700 mm (15.75–66.93 in)
FMax
FMax 800
Ø 350–800 mm (13.78–31.50 in)
FMax
FMax 2000
Ø 500–2,000 mm (19.69–78.74 in)
FMax
FMax 3000
Ø 1,000–3,000 mm (39.37–118.11 in)
FMax
FMax 4000
Ø 1,500–4,700 mm (59.06–185.04 in)
FMax
FMax 6000
Ø 1,900–6,000 mm (74.80–236.22 in)
TOP
TOP 200
Up to Ø 200 mm (7.87 in)
TOP
TOP 400
Up to Ø 400 mm (15.75 in)
Rotary Welding
RW 2010
Ø 25–400 mm (0.98–15.75 in)
Rotary Welding
RW 2014
Ø 50–550 mm (1.97–21.65 in)
RSX9
RSX9 800
Ø 500–800 mm (19.69–31.50 in)
RSX9
RSX9 1200
Ø 700–1,200 mm (27.56–47.24 in)
WTMax
WTMax
Ø 350 mm (13.78 in)
SM 500
SM 500
2,280 mm (89.76 in)

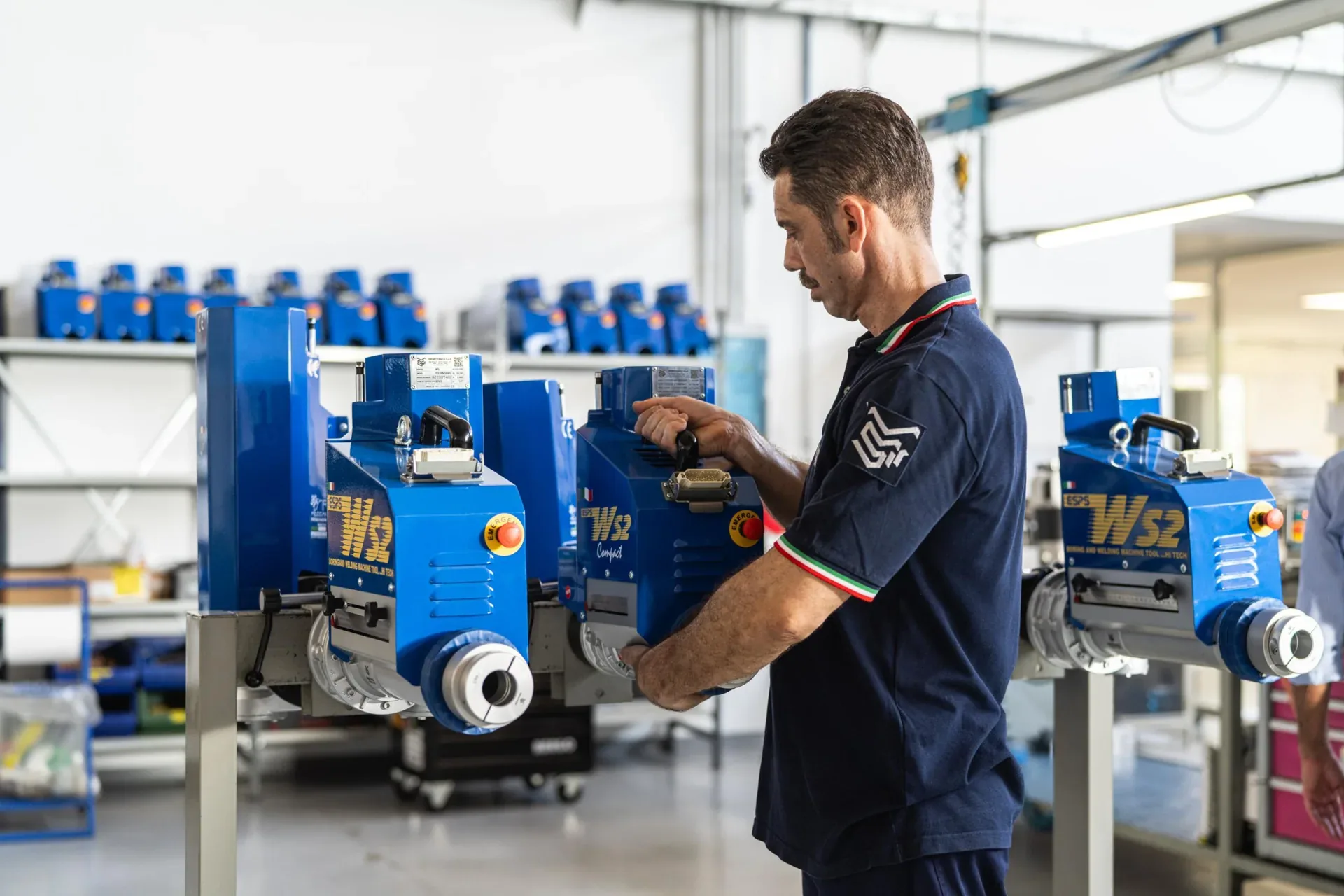

About SIR Meccanica
On-site machining since 1991
SIR Meccanica builds portable multifunction machine tools in Italy. Its first machine, the BIMOTOR, was launched in 1991 to repair earthmoving equipment on the job site instead of in the shop. Today the range covers eight series for in-line boring, overlay welding, facing, turning, tapping, threading, drilling and linear cutting.
Every machine goes through a quality control process and a final test before shipping. Prella Technologies handles quote, delivery, start-up and service for SIR Meccanica machines across North America.
Since 1991
8 product series
Sold in 136 countries
18,000 m² (193,750 sq ft) site
Why buy through Prella
US-based sales and support
One team in East Dundee, IL for quotes, delivery, start-up and service across North America.
Configured to your application
Models, options and accessories selected with the manufacturer for your parts, process and plant.
Manuals one scan away
Every machine ships with a QR code linking to its manuals and drawings, matched to its serial number.
Portable line boring, bore welding and flange facing machines in the US
A worn pin bore on an excavator boom or a damaged flange on a pressure vessel usually means downtime. Pulling the part, shipping it to a machine shop and reinstalling it takes days or weeks. SIR Meccanica portable line boring machines bring the machine tool to the part. The WS series bores and weld-builds holes from 22 mm (0.87 in) up to 1,700 mm (66.9 in) in one setup. The FMax portable flange facing machines handle faces up to 6,000 mm (236 in). TOP orbital lathes turn fixed tubular parts, and WTMax machines cut internal threads on site.
Prella Technologies supplies SIR Meccanica machines to US and Canadian contractors, rental fleets, shipyards and plant maintenance teams. We help you size the right model and kits for your bores, flanges and threads. Then we handle delivery, start-up and service from our East Dundee, Illinois office. For field repair crews, that means less downtime on heavy equipment and fewer parts shipped out to a machine shop. For plants, it means critical components get repaired where they are installed.
SIR Meccanica: frequently asked questions
What is a portable line boring machine?
A portable line boring machine mounts directly on the equipment and machines worn or oval bores in place. SIR Meccanica WS machines bore and overlay weld holes and pin joints in one setup, so you restore the bore to original size without dismantling the machine or sending parts to a workshop.
Can one machine both weld and bore?
Yes. The WS series combines in-line boring and overlay welding. You build up the worn bore with weld, then machine it back to size with the same setup. SIR Meccanica also offers the Rotary Welding series for dedicated internal and external overlay welding of tubular bodies.
What sizes can SIR Meccanica machines handle?
Machining diameters run from Ø 22 mm (0.87 in) on the W Smaller up to Ø 1,700 mm (66.9 in) on the WS7 Plus Triphasic. The FMax flange facing range reaches Ø 6,000 mm (236.2 in). Prella can recommend the model and kits that match your parts.
Who supports SIR Meccanica machines in North America?
Prella Technologies in East Dundee, Illinois handles quotes, delivery, start-up and service for SIR Meccanica machines across North America. Call +1-847-260-9022 or email info@prellatech.com to discuss your application, request a quote or schedule support for a machine already in your fleet.
Get a quote for a SIR Meccanica machine
Tell us the part, bore or flange size and where you work. We will recommend the right series and kits and send a quote.
