OMNI multidirectional heavy-duty platform carts
Battery-powered, self-propelled heavy-duty platform carts that move in any direction, built for heavy loads in space-constrained plants.
Capacity
1 to 1,000 metric t
Speed
Up to 3.7 mph
Battery range
0.9 to 9.3+ miles
Gradeability
2% to 20%+
Lifting deck stroke
from 2 in (50 mm)
Morello OMNI in action
▶ Watch the videoSteering modes
Six steering modes, one cart
AC brushless motors drive and steer each wheel unit, so OMNI can position a load where a standard cart cannot turn.
01
Lateral
Sideways travel
02
Diagonal (crab)
Angled travel, same heading
03
90° rotation
Quarter turn in place
04
Carousel 360°
Full turn on a radius
05
Front or rear
Front or rear axle steering, like a standard cart
06
Around a point
Turns around any chosen point
Video
See OMNI in action
A Morello OMNI omnidirectional trolley moving a heavy load sideways, diagonally and on the spot.
Specifications
Configured to order
Deck size, capacity and speed are set on your load and route. Figures show the available range.
Capacity
1 to 1,000 metric t (about 2,200 to 2,200,000 lb)
Deck dimensions
On request
Speed
20–30 m/min standard, up to 3.7 mph (6 km/h) on request
Drive and steering
AC brushless electric motors
Batteries
Lead acid, gel, lithium or pure lead
Battery range
0.9 to over 9.3 miles (1.5 to over 15 km)
Wheels
Solid rubber, polyurethane or pneumatic
Gradeability
2% to over 20%
Lifting deck
Self-loading, stroke from 2 in (50 mm)
Suspension
Oscillating wheel units with hydraulic suspension (standard)
Controls
Wired, remote, footboard or driver's cab
Environment
Indoor, outdoor, offshore; ATEX/IECEx Zone 1 & 2
Where OMNI works
Applications

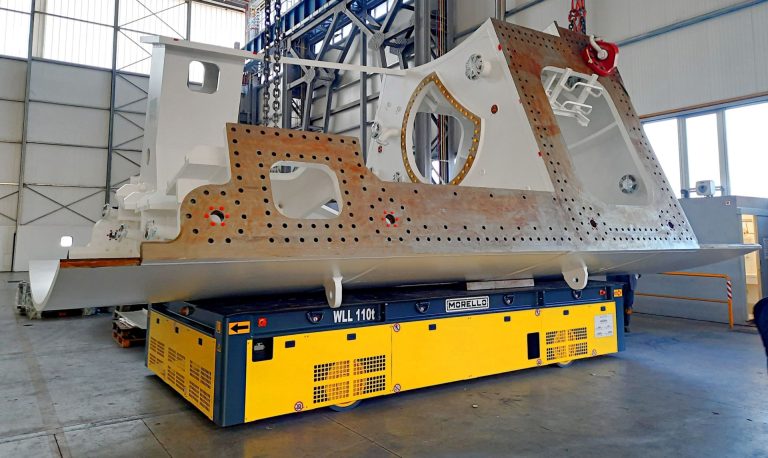

Die and mold handling
Automotive components

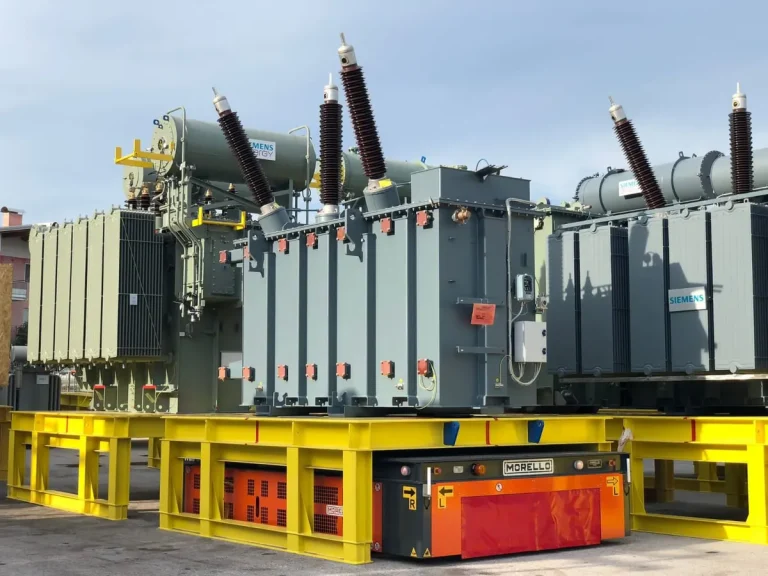

Power transformers

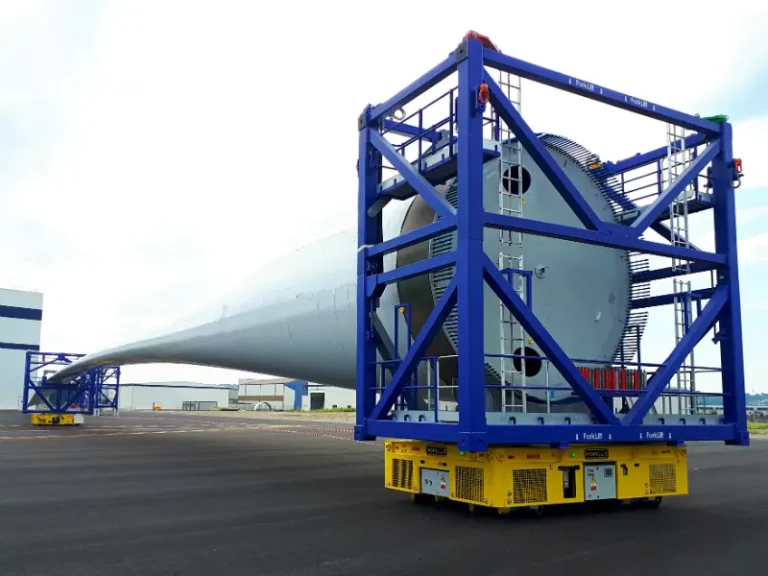

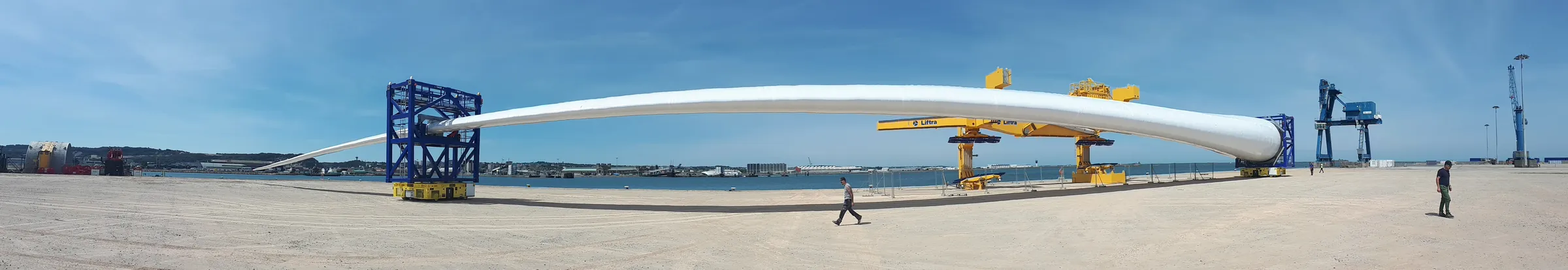

Wind turbine components

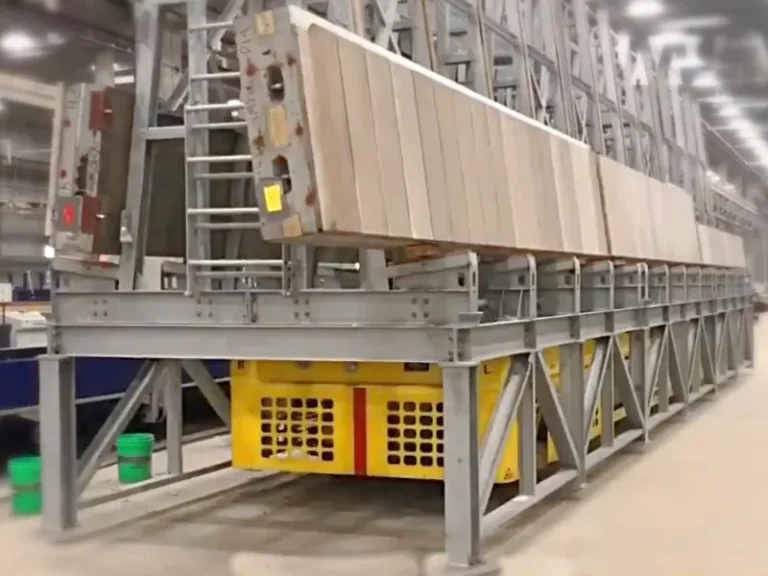

Precast concrete

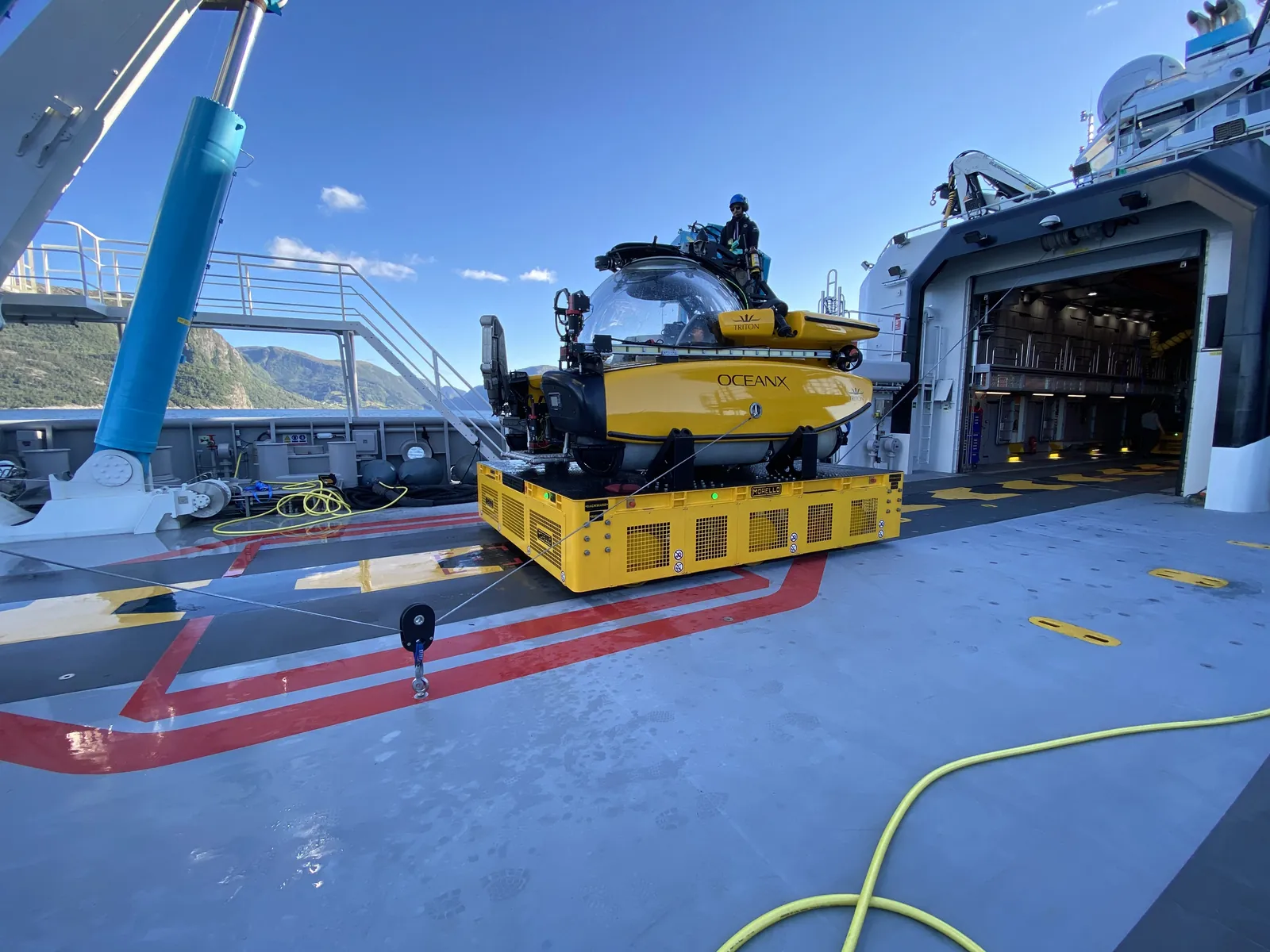

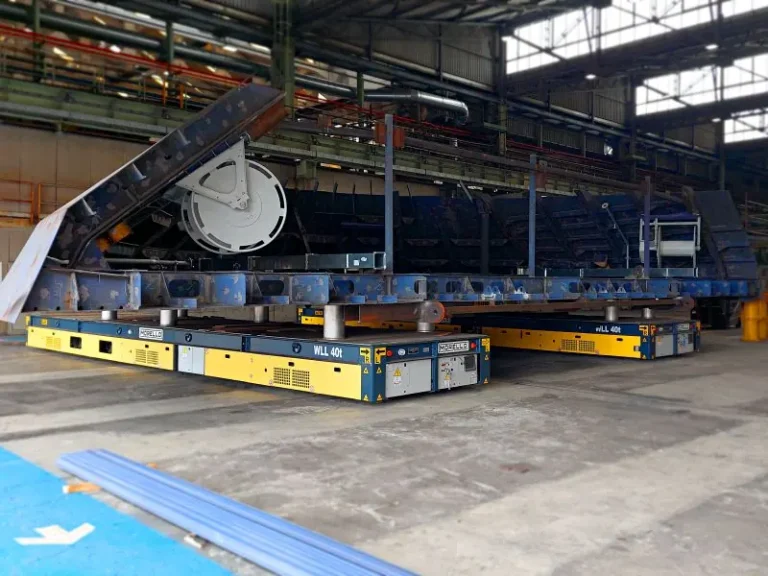

Shipyards
Paper industry

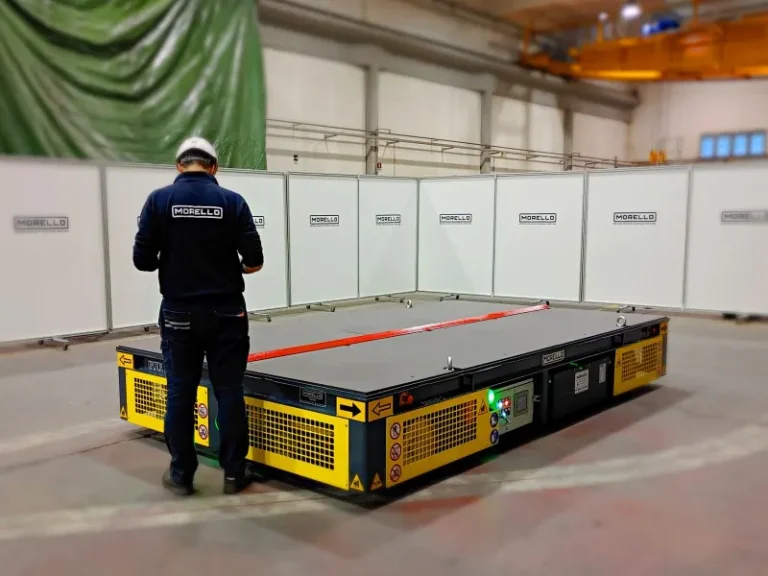

Railway maintenance
Safety
Built-in protection

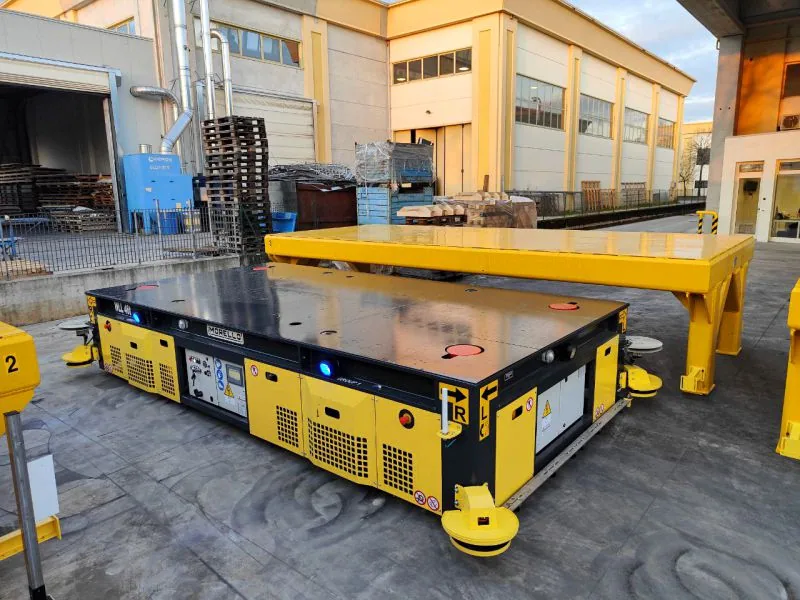

✓ SICK safety laser scanners
✓ Sensitive bumpers
✓ Ultrasonic sensors
✓ Zero-emission electric operation
Options
Ready for what's next
✓ AGV automated guidance
✓ Industry 4.0 connectivity
✓ Integrated remote assistance panel
✓ Explosion-proof configurations

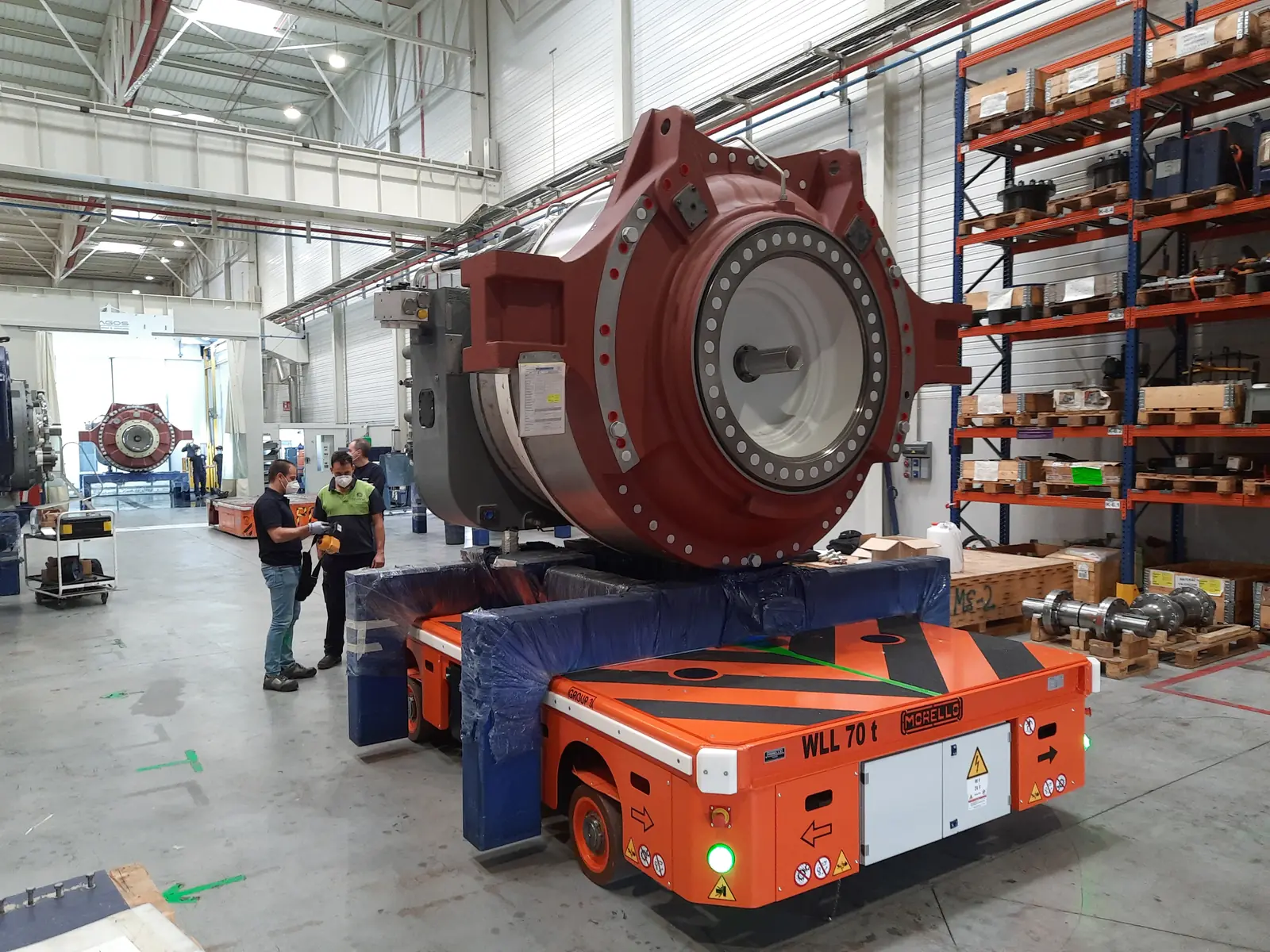

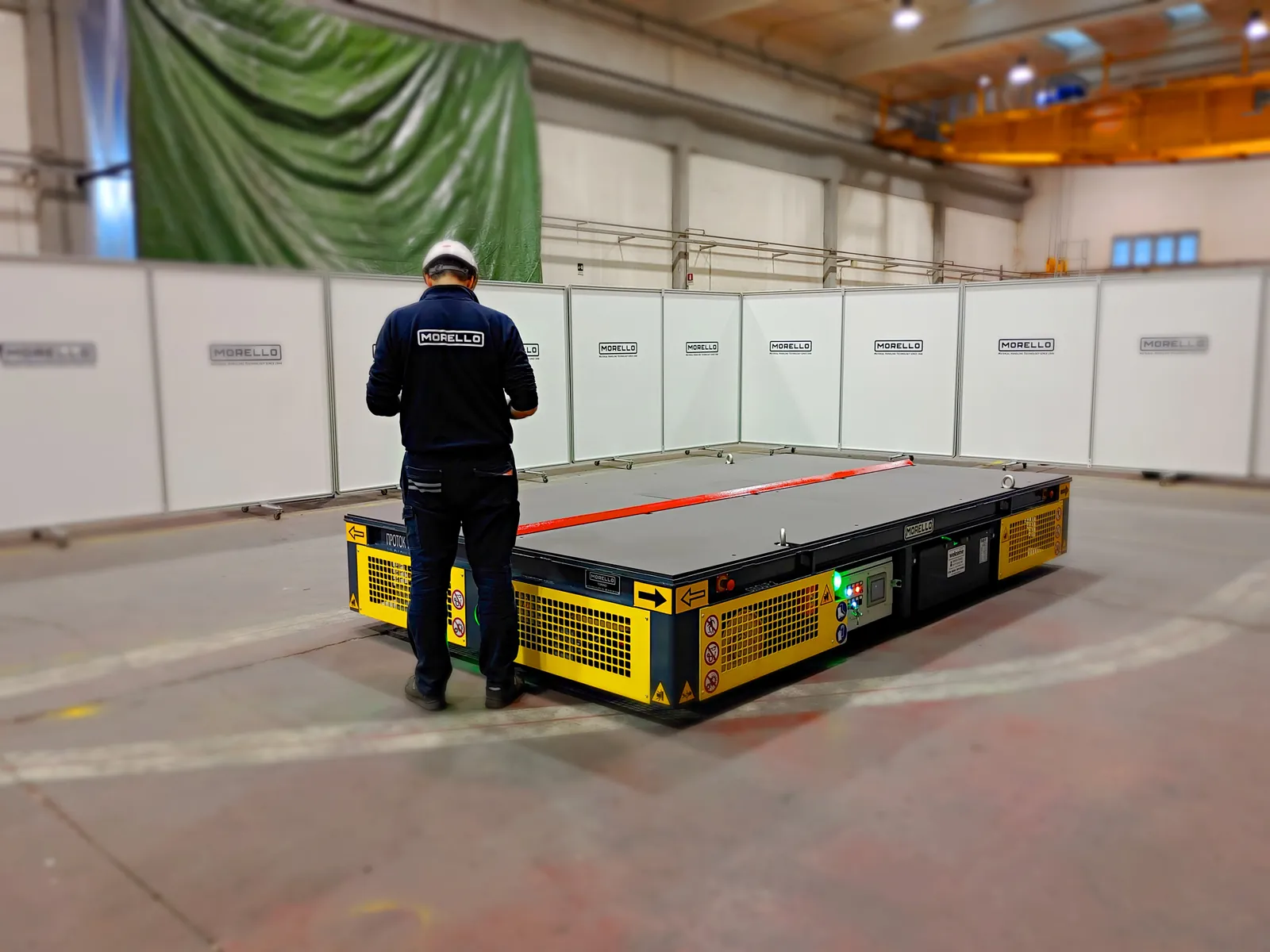

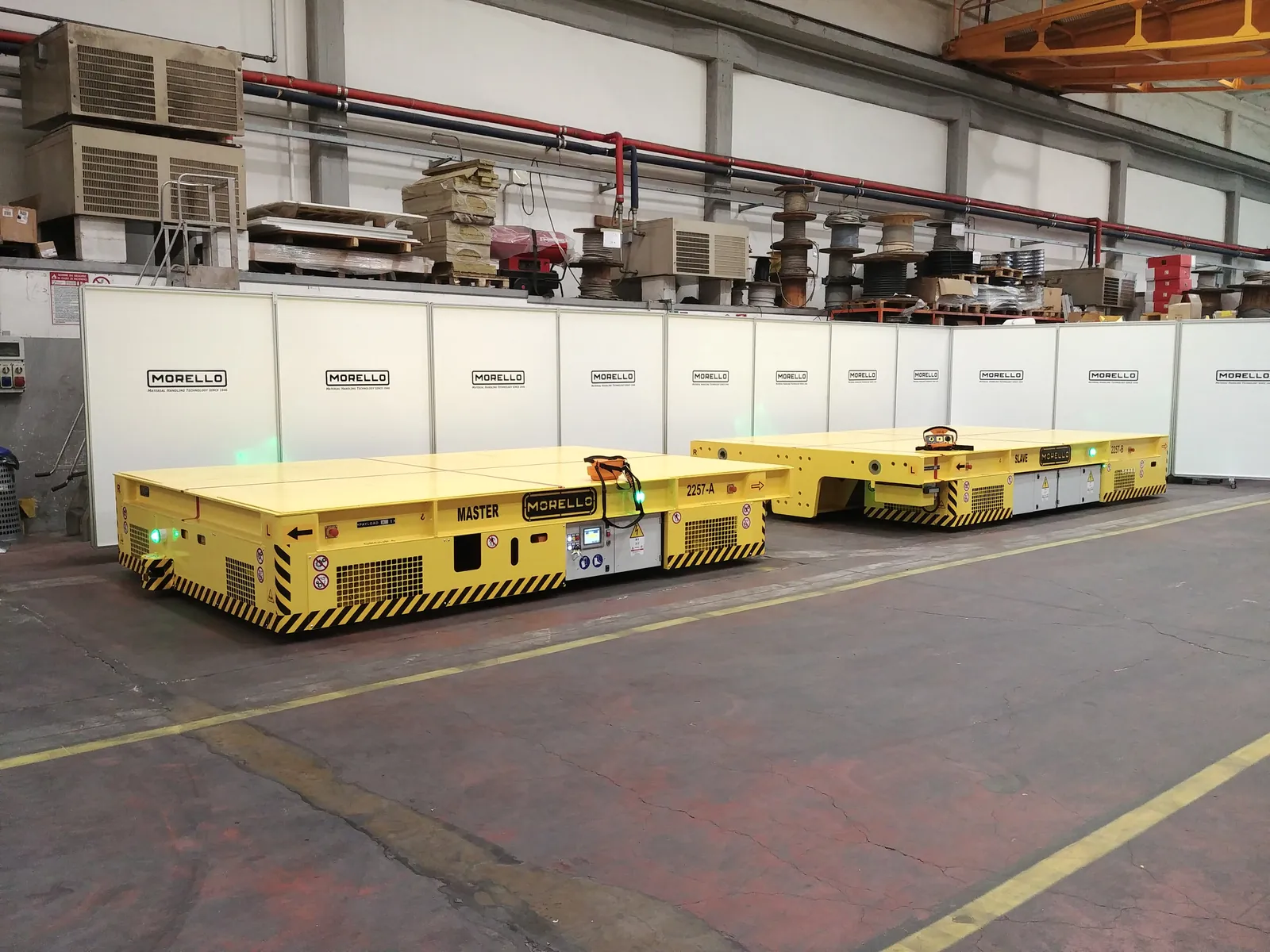

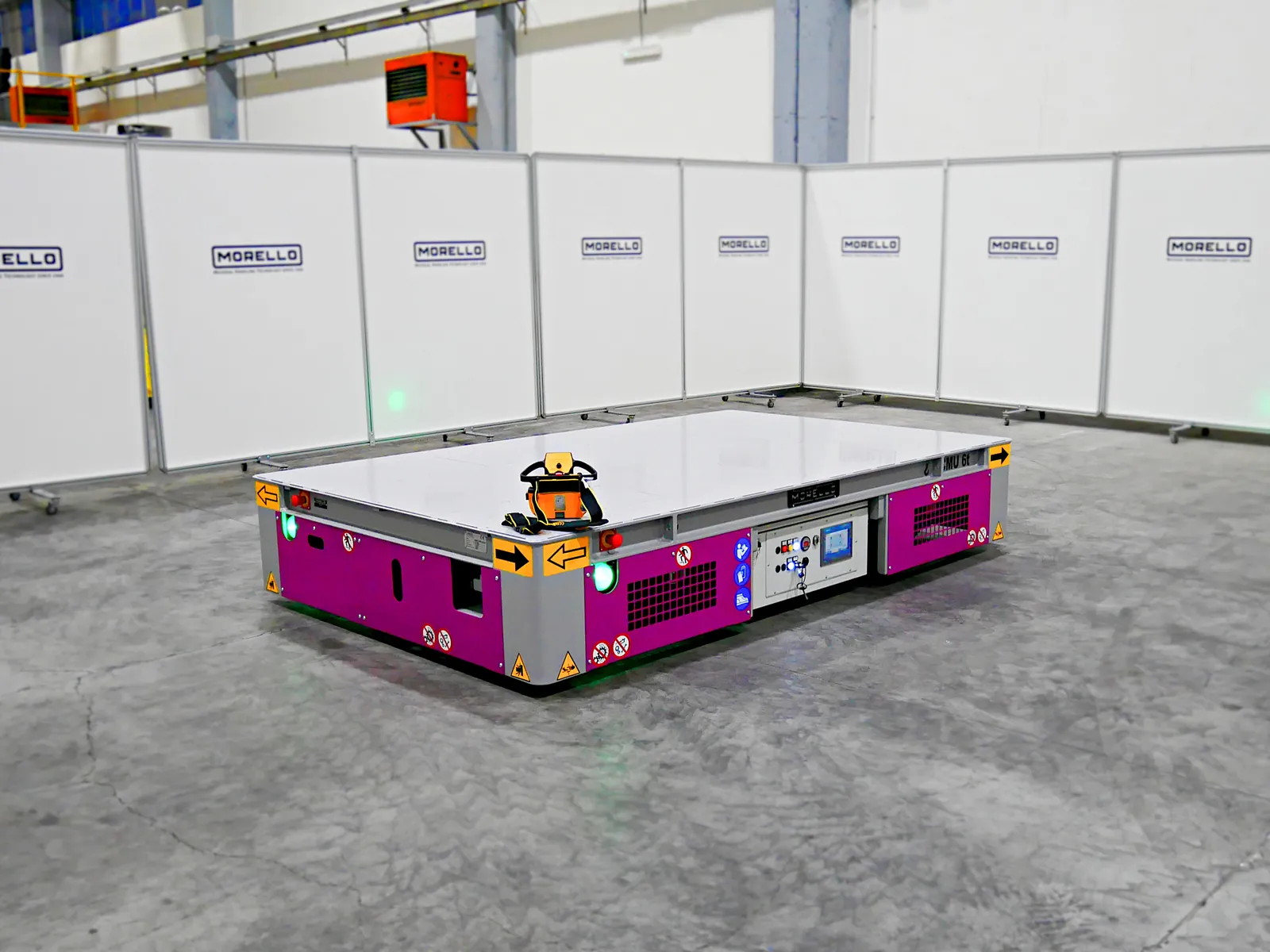

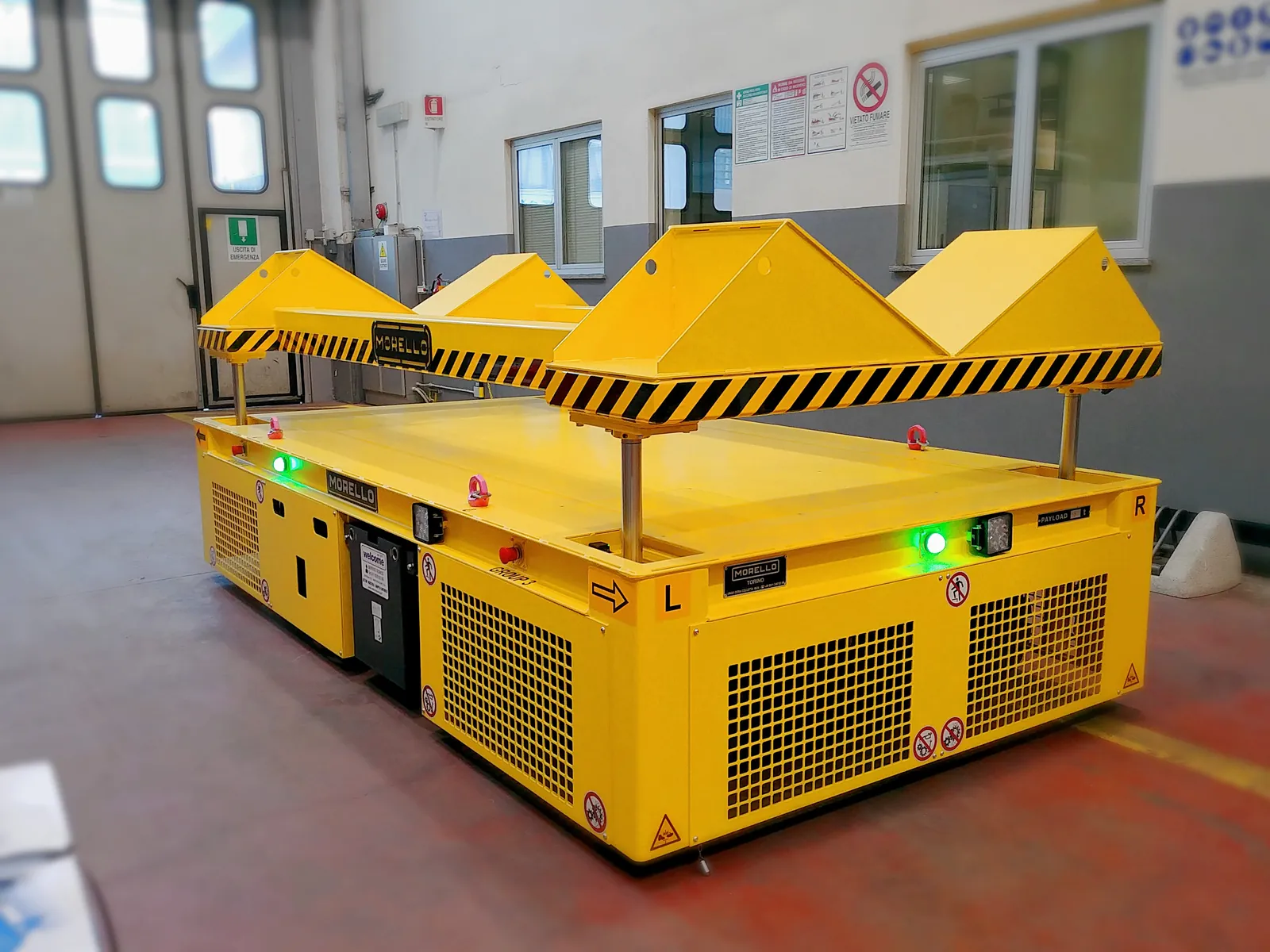

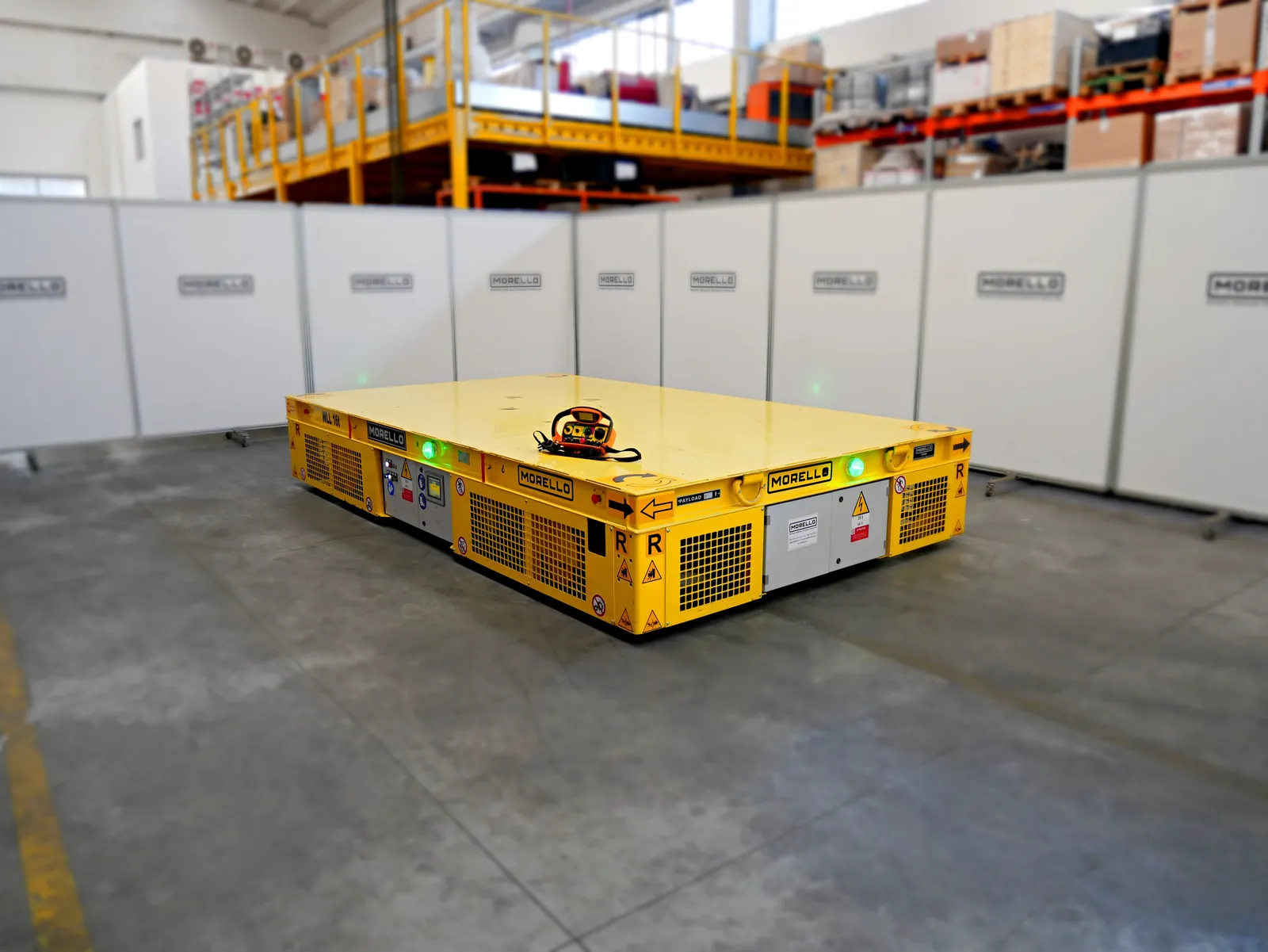

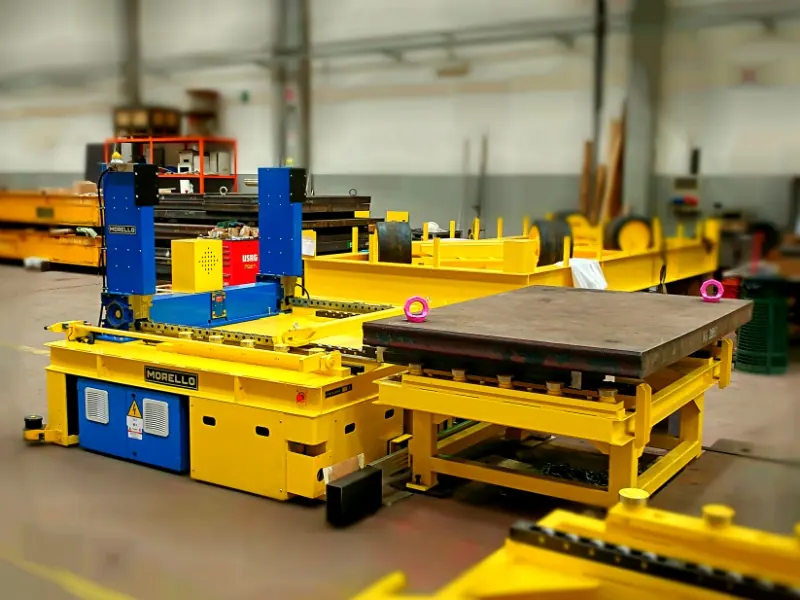

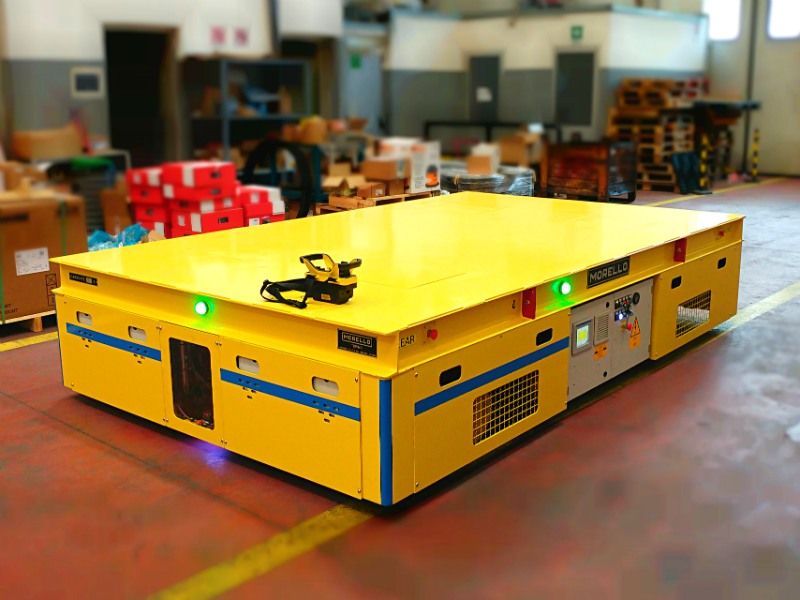

Gallery
OMNI carts in the field
Morello OMNI: frequently asked questions
What is a Morello OMNI multidirectional cart?
OMNI is a battery-powered, self-propelled modular cart from Morello. AC brushless motors drive and steer each wheel unit, so the cart can travel sideways, diagonally, steer front or rear, turn 360° on a carousel or around any chosen point while carrying heavy loads in confined spaces.
How much weight can an OMNI cart carry?
OMNI carts are configured from 1 up to 1,000 metric tons per cart, which is about 2,200 to 2,200,000 lb. Deck size and capacity are set on your load.
How fast does OMNI travel and how far can it go on one charge?
Standard speed is 20–30 m/min (about 0.7 to 1.1 mph), up to 3.7 mph (6 km/h) on request, and battery range goes from about 0.9 to over 9.3 miles (1.5 to over 15 km), depending on load, battery type and configuration. Gradeability goes from 2% to over 20%.

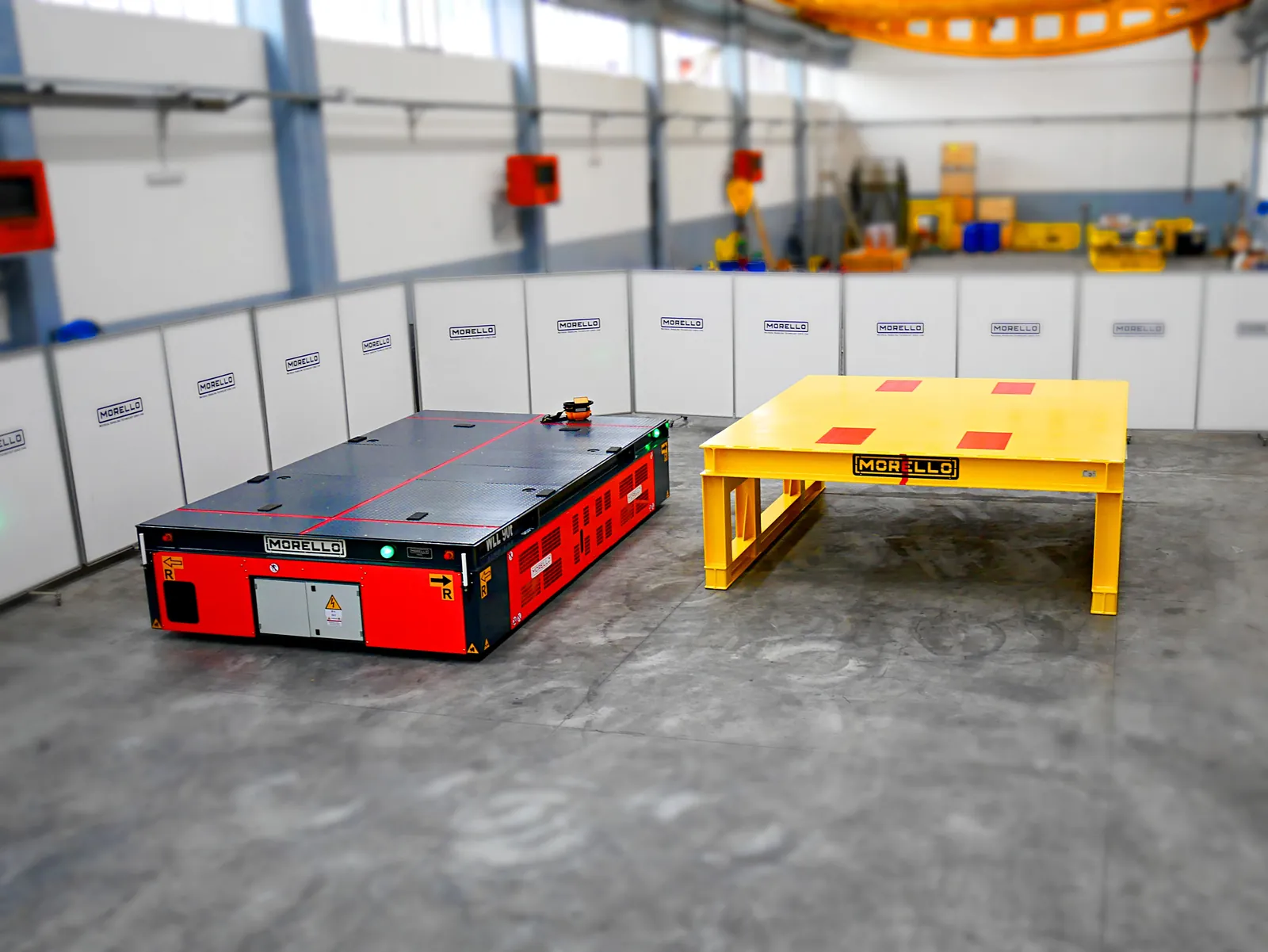

Can OMNI load itself without a crane?
Yes. OMNI can be supplied with a self-loading lifting deck with a stroke from 2 inches (50 mm), so it slides under the load, lifts it and moves it without a crane.
Is OMNI available as an AGV or for hazardous areas?
Yes. Options include AGV automated guidance, Industry 4.0 connectivity, an integrated remote assistance panel and explosion-proof ATEX/IECEx configurations for Zone 1 and Zone 2.
How do I get a quote for an OMNI cart?
Send us the load weight and dimensions, the route and the floor conditions using the quote form or call +1.847.260.9022. An engineer in East Dundee, Illinois, will follow up with a configuration.
